Hella 2XD014564021 LED Strobe-type Beacon Warning Light - Red/Blue

Hella 2XD014564021 LED Strobe-type Beacon Warning Light - Red/Blue

Hella 2XD014564021 LED Strobe-type Beacon Warning Light - Red/Blue

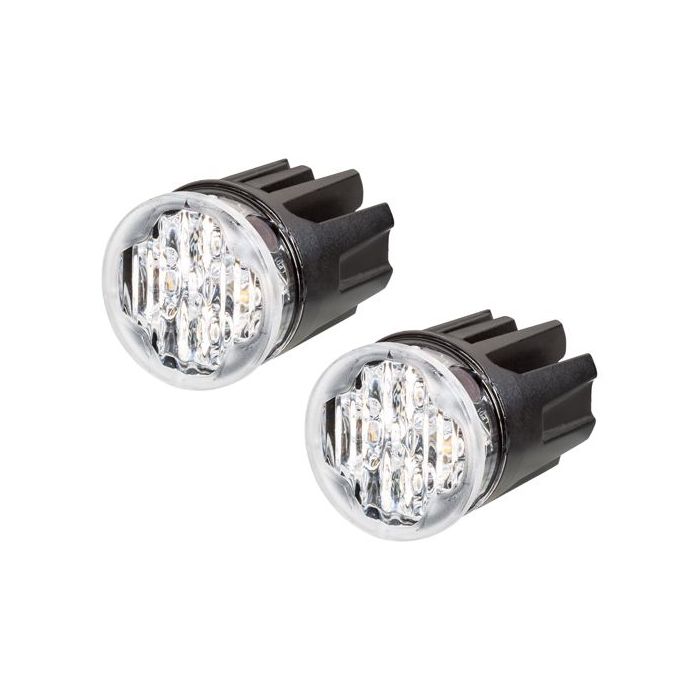

LED-Strobe-type Beacon - BST-Round - 12/24V - Red/blue - Fitting - Cable: 1850mm - mounting - Kit - Quantity: 2

The BST-Round warning light is characterised by its round design, which allows flexible installation in different areas of the vehicle. Four power LEDs and high-quality precision optics produce an intense warning signal with minimal power consumption. The warning lights are supplied as a pre-configured set consisting of 1 ballast, 2 light modules and 2 mounting rings. They can be synchronised with several units and have different flash sequences. In addition, the BST-Round warning lights are ECE-R65 and SAE tested. The light modules have an integrated day/night mode and thus adjust the brightness of the warning signal to the ambient light. This ensures increased visibility during the day and the avoidance of glare at night. The warning lights can be mounted in various positions around the vehicle using the mounting rings included in the scope of delivery. They are particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.

Features

• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 33W
• With flashing warning signal - Lens Colour: Crystal clear - LED colour: Red/blue - Fitting Position: mounting
• Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IP6X/IPX4K/IPX9K
• Housing material: Aluminium - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• with control unit - Electromagnetic Compatibility (EMC)
• Can be synchronised with several units
• Different flash patterns adjustable
• Integrated day / night mode
• Brief Information

Specifications

• Part number: 2XD014564021
• Hella number: 2XD 014 564-021
• Barcode (EAN): 4082300770896
• Brand: Hella
• Mounting Type: Fitting
• Fitting Position: mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Outer Diameter 1: 36 mm
• Light Function: with flashing warning signal
• Protection Type per ISO 20653: IP6X / IPX4K / IPX9K
• fulfils ECE standard: R10 / R65
• Lens Colour: Crystal clear
• Quantity Unit: Kit
• Number of LEDs: 4
• Housing material: Aluminium
• Housing Colour: black
• Power Consumption: 33 W
• Lens Material: PC (Polycarbonate)
• Reverse polarity protection: Yes
• Temperature range from: -40°C
• Temperature range to: 80°C
• Cable Length: 1850 mm
• Light colour: red/blue
• Weight: 386 g
• LED Colour: red/blue
• Product line: BST-Round

Follow nat. rules for attachment, install. and operation. Electromagnetic Compatibility (EMC) 7439-92-1; Lead Follow nat. rules for attachment, install. and operation. Assy./disassy. by qualified personnel required!
