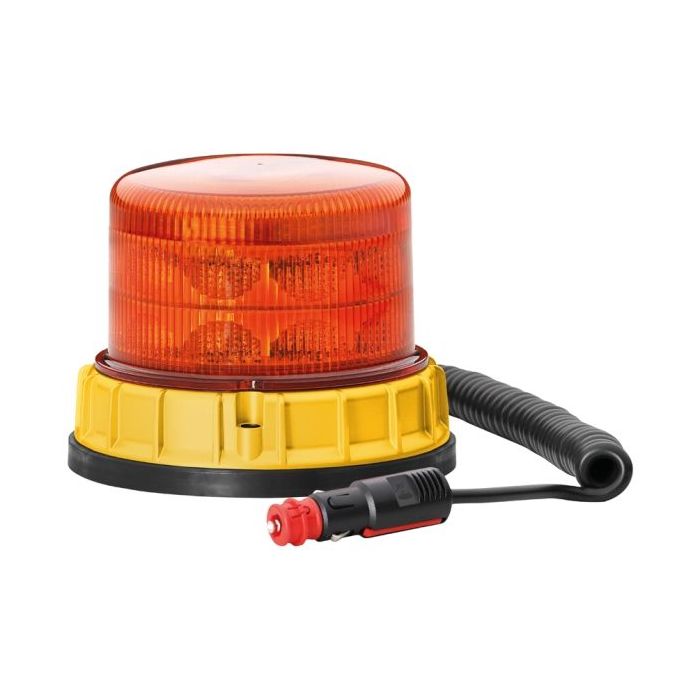

Hella 2XD012985101 LED DuraRAY 4.0 Strobe-type Beacon - Amber

Hella 2XD012985101 LED DuraRAY 4.0 Strobe-type Beacon - Amber

Hella 2XD012985101 LED DuraRAY 4.0 Strobe-type Beacon - Amber

LED-Strobe-type Beacon - DuraRay 4.0 - 12/24/10/30V - Magnet Mount - Plug: DIN ISO 4165 - Plug: Male - Quantity: 1

Features

• Lamp Type: LED - Number of LEDs: 20 - Power consumption: 32W
• With flashing warning signal/With rotating warning signal - Lens Colour: yellow (amber)
• Registration Type: ADR/GGVS/SAE - Fulfils ECE norm.: R10/R65 - fulfils SAE norm: J845 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: Aluminium - Housing Colour: Yellow - Diffusing Lens Material: PC (Polycarbonate)
• Height: 131mm - with cable/Electromagnetic Compatibility (EMC)

Specifications

• Part number: 2XD012985101
• Hella number: 2XD 012 985-101
• Barcode (EAN): 4082300631814
• Brand: Hella
• Mounting Type: Magnet Mount
• Light Design: LED
• Lamp Type: LED
• Voltage: 10 / 12 / 24 / 30 V
• Outer Diameter 1: 165 mm
• Height: 131 mm
• Light Function: with flashing warning signal / with rotating warning signal
• Number of LEDs: 20
• Plug Type ID: DIN ISO 4165
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• fulfils ECE standard: R10 / R65
• Registration Type: ADR/GGVS approved
• fulfils SAE standard: J845
• fulfils test standard: RCM
• Lens Colour: yellow (amber)
• Housing Colour: yellow
• Plug Type: Male
• Flash rate per minute: 122
• Power Consumption: 32 W
• Housing material: Aluminium
• Temperature range from: -40°C
• Temperature range to: 60°C
• Lens Material: PC (Polycarbonate)
• Reverse polarity protection: Yes
• Product line: DuraRay 4.0

Electromagnetic Compatibility (EMC) Electromagnetic Compatibility (EMC) Assy./disassy. by qualified personnel required!
