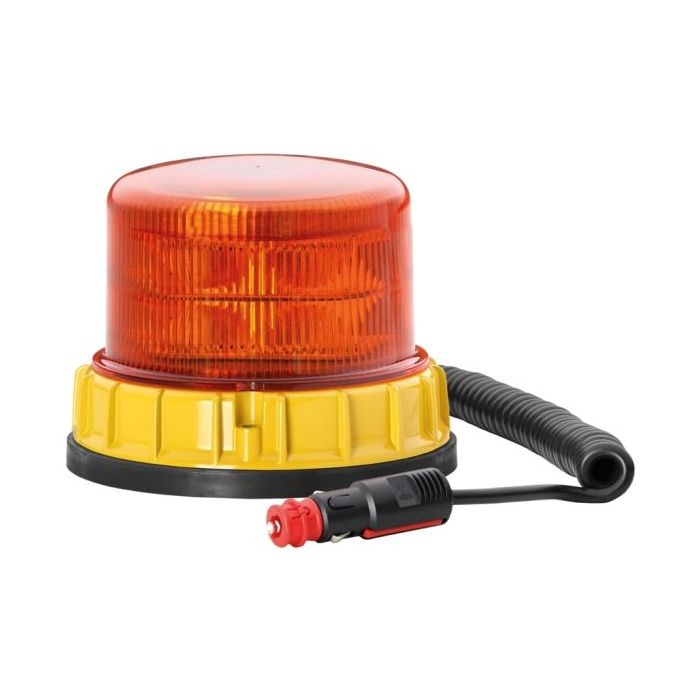

Hella 2XD012984101 LED Strobe-type Beacon Magnet Mount - Amber

Hella 2XD012984101 LED Strobe-type Beacon Magnet Mount - Amber

Hella 2XD012984101 LED Strobe-type Beacon Magnet Mount - Amber

Rotating Beacon - UltraRAY 2.1 - 10/30V - Magnet Mount - Plug: Male

Features

• Lamp Type: LED - Power consumption: 22W
• With flashing warning signal - Lens Colour: yellow (amber)
• Registration Type: SAE - Fulfils ECE norm.: R10 - fulfils SAE norm: J845 class 1 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: Cast Aluminium - Housing Colour: Yellow - Diffusing Lens Material: PC (Polycarbonate)
• Height: 131mm - with cable

Specifications

• Part number: 2XD012984101
• Hella number: 2XD 012 984-101
• Barcode (EAN): 4082300631876
• Brand: Hella
• Mounting Type: Magnet Mount
• Voltage: 10 / 30 V
• Lamp Type: LED
• Power Consumption: 22 W
• Temperature range from: -40°C
• Temperature range to: 60°C
• Lens Material: PC (Polycarbonate)
• Lens Colour: yellow (amber)
• Housing material: Cast Aluminium
• Housing Colour: yellow
• Light Function: with flashing warning signal
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Housing Diameter: 165 mm
• Height: 131 mm
• Plug Type: Male
• fulfils ECE standard: R10
• Registration Type: SAE approved
• fulfils SAE standard: J845 Class 1
• fulfils test standard: RCM
• Product line: UltraRAY 2.1

with cable Assy./disassy. by qualified personnel required!
