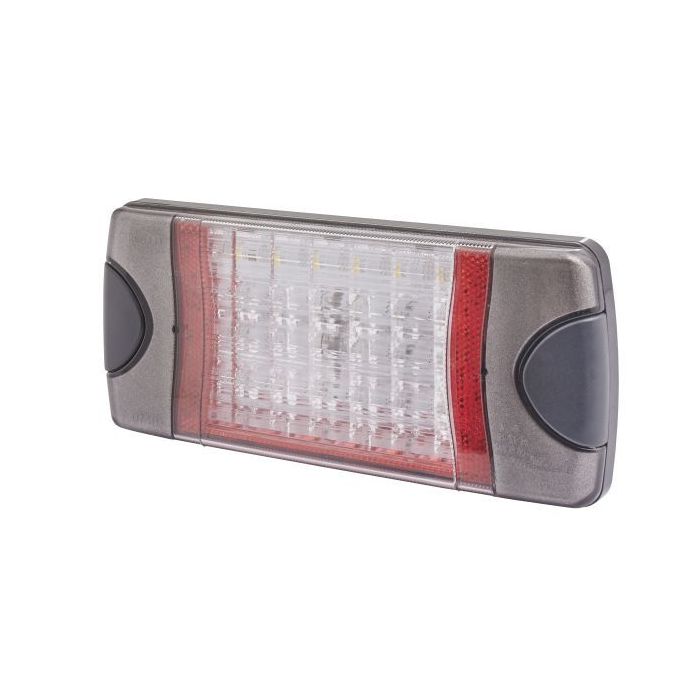

Hella 2VP015075101 DuraLED Combination Signal Rear Lamp

Hella 2VP015075101 DuraLED Combination Signal Rear Lamp

Hella 2VP015075101 DuraLED Combination Signal Rear Lamp

Rearlight - DuraLED Combi - LED - 12/24V - mounting - Plug: DEUTSCH plug - right/left

The multi-function light DuraLED Combi combines 4 light functions (tail light, brake light, indicator and reversing light) in LED technology in one light. The DuraLED Combi has a slim design with a mounting height of only 25 mm and is both maintenance-free, fully hermetically sealed, impact-resistant and long-term UV-resistant. The combination rearlight is available with or without reflector as well as with or without indicator failure check (compatibility according to ISO 13207-1). The reverse polarity protection also ensures that the luminaire is not damaged if the poles are incorrectly connected.

Features

• Width: 223mm - Height: 96mm - Lamp Type: LED - with indicator failure control
• Light functions: 5 - with indicator/with stop light/with reverse light/with reflector/with taillight
• Fulfils ECE norm.: R148/R150/R10 - Prot.type (IP Code): IP6K7/IP6K9K
• Mounting Type: mounting - Fastening Type: for horizontal fastening
• Maintenance-free and fully hermetically sealed
• Impact resistant and long-term UV-resistant
• Slim design with an installation height of only 25 mm

Specifications

• Part number: 2VP015075101
• Hella number: 2VP 015 075-101
• Barcode (EAN): 9416325249016
• Brand: Hella
• Mounting Type: mounting
• Fitting Position: Left / Right
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Width: 223 mm
• Height: 96 mm
• Thickness: 26 mm
• Fastening Type: for horizontal fastening
• Plug Type: DEUTSCH plug
• Power Consumption: 14.5 W
• Number of light functions: 5
• Light Function: with indicator / with reflector / with reverse light / with stop light / with taillight
• fulfils ECE standard: R10 / R148 / R150
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Product line: DuraLED

with direction indicator failure control Assy./disassy. by qualified personnel required!
