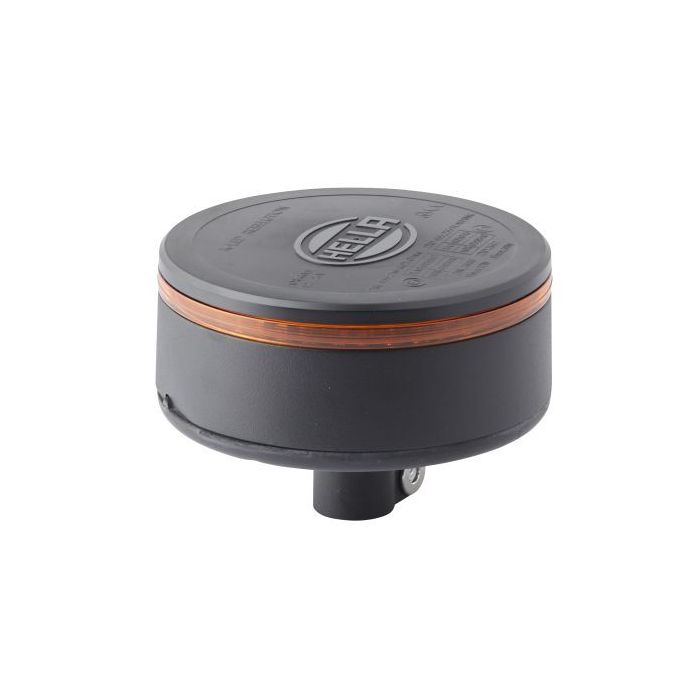

Hella 2RL455256011 K-LED Rebelution Rotating Beacon - 12V, 24V (Amber)

Hella 2RL455256011 K-LED Rebelution Rotating Beacon - 12V, 24V (Amber)

Hella 2RL455256011 K-LED Rebelution Rotating Beacon - 12V, 24V (Amber)

LED-Rotating Beacon - K-LED Rebelution - 12/24V - Amber - Flexible pipe sockets - Quantity: 1

Despite its minimal light emission area, the beacon emits a clearly visible flashing warning signal and complies with European Directive ECE-R65 for use on public roads

The K-LED Rebelution is a true innovation in the field of warning lights and the LED technology used sets new standards. The new development enables maximum performance with minimalist design, because the beacon does not need a classic light cover. Instead, the light is visible through a circumferential, ring-shaped light band. Despite this minimal light emission area, the beacon emits a clearly visible warning signal and complies with the European directive ECE-R65 for use in public road traffic. Thanks to the futuristic, unobtrusive design, the light also integrates perfectly into the appearance of the vehicle. It revolutionises the beacon market both visually and technically and fulfils the maintenance-free "Fit & Forget" approach. The LED technology as well as the materials used and the design ensure a very long service life and guarantee long-term functional reliability. Further advantages are the protection against water and dust as well as the excellent electromagnetic compatibility (EMC). On request, it is also possible to integrate your own logo and to customise the colour of the housing.

Features

• Lamp Type: LED - Number of LEDs: 32 - Power consumption: 12W
• With rotating warning signal - Lens Colour: yellow (amber)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: Aluminium - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Height: 105mm
• The new development enables maximum performance with minimalist design, because the beacon does not require a classic light dome
• The light is visible through a circular light band
• The LED technology, the materials used and the design ensure a very long service life and guarantee long-term functional reliability
• Further advantages are the protection against water and dust as well as the excellent electromagnetic compatibility (EMC)

Specifications

• Part number: 2RL455256011
• Hella number: 2RL 455 256-011
• Barcode (EAN): 4082300784343
• Brand: Hella
• Mounting Type: Flexible pipe sockets
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Power Consumption: 12 W
• Height: 105 mm
• Outer Diameter: 149 mm
• Light Function: with rotating warning signal
• Light colour: yellow (amber)
• Number of LEDs: 32
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• fulfils ECE standard: R10 / R65 TA1
• Registration Type: ADR/GGVS approved
• fulfils test standard: RCM
• fulfils SAE standard: J845 Class2
• fulfils EMC/CISPR standard: Class 3
• Lens Material: PC (Polycarbonate)
• Lens Colour: yellow (amber)
• Housing material: Aluminium
• Housing Colour: black
• Plug Type ID: DIN ISO 4165
• Rotating beacon RPM: 120 1/min
• Temperature range from: -40°C
• Temperature range to: 60°C
• Weight: 995 g
• Product line: K-LED Rebelution

Assy./disassy. by qualified personnel required!
