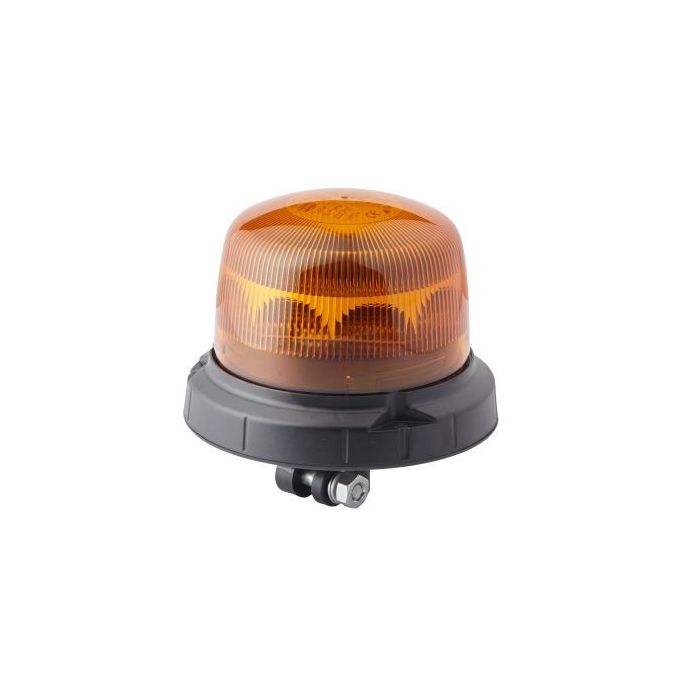

Hella 2RL014979011 Rotating Beacon RotaLED Compact 12-24V (Amber Lens)

Hella 2RL014979011 Rotating Beacon RotaLED Compact 12-24V (Amber Lens)

Hella 2RL014979011 Rotating Beacon RotaLED Compact 12-24V (Amber Lens)

LED-Rotating Beacon - RotaLED Compact - 12/24V - Amber - Flexible pipe sockets - Quantity: 1

The RotaLED Compact beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 118 mm (F) to 164 mm (FL), depending on the design. The RotaLED Compact beacon meets the requirements of IP 67 and IP X9K and is therefore dust-tight and resistant to high-pressure cleaners. Even short-term immersion up to 1 metre under water is possible. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The RotaLED Compact is the successor to the halogen beacon series Rotafix, Rotaflex and Rota Compact and makes a 1:1 exchange to LED technology possible.

Features

• Lamp Type: LED - Number of LEDs: 16 - Power consumption: 7W
• With rotating warning signal/with indicator (LED) - Lens Colour: yellow (amber) - LED colour: White
• Registration Type: ADR/GGVS/SAE - Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Height: 164mm - Electromagnetic Compatibility (EMC)
• The RotaLED Compact is the LED successor to the existing halogen beacon series Rotafix, Rotaflex and Rota Compact. These are 1:1 interchangeable
• Signal generation by means of electronic concept, without moving parts
• Compact design
• Impact-resistant polycarbonate light dome
• Dust-tight, resistant to high-pressure cleaners and protected against immersion to a depth of 1 m

Specifications

• Part number: 2RL014979011
• Hella number: 2RL 014 979-011
• Barcode (EAN): 4082300733372
• Brand: Hella
• Mounting Type: Flexible pipe sockets
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Power Consumption: 7 W
• Height: 164 mm
• Outer Diameter: 165 mm
• Light Function: with rotating warning signal
• Rotating beacon RPM: 123 1/min
• Light colour: yellow (amber)
• Number of LEDs: 16
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved
• fulfils ECE standard: R10 / R65 TA1
• fulfils SAE standard: J845 Class 2
• fulfils EMC/CISPR standard: Class 5
• Lens Colour: yellow (amber)
• Lens Material: PC (Polycarbonate)
• Housing Colour: black
• Housing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
• Temperature range from: -40°C
• Temperature range to: 60°C
• Weight: 400 g
• Reverse polarity protection: Yes
• Product line: RotaLED Compact

Assy./disassy. by qualified personnel required!
