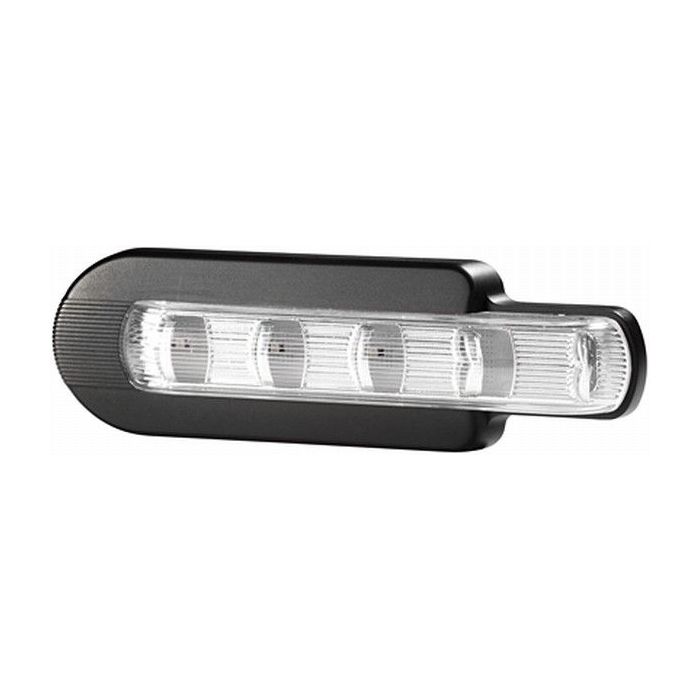

Hella 2BM011788021 Auxiliary Direction Indicator Lamp

Hella 2BM011788021 Auxiliary Direction Indicator Lamp

Hella 2BM011788021 Auxiliary Direction Indicator Lamp

Auxiliary Direction Indicator - LED - 24V - mounting/Screw Connection - SAE/CCC - Lens Colour: Crystal clear - Cable: 500mm - Plug: open cable ends - Lateral Mounting - Quantity: 1

The luminaires have been tested according to HELLA standard 67101 class 6.1 and therefore meet the requirements for buses, trucks and tractors in large series over 6.5 tonnes

To extend the service life of the luminaire, the components are arranged in a temperature-optimised manner. This prevents the LEDs from overheating at high temperatures.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. We also rely on the highest quality and the use of efficient technologies for these luminaires. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

Regarding single or double function lamps with LEDs without flasher function In connection with these low powers, which are very different from bulb versions, there can be problems during operation on various traction vehicles because further lighting functions are detected by some traction vehicles. This is a vehicle comfort function which is not required by legislation and does not release drivers from their obligation to see for themselves that the lighting equipment is working. Here, too, faulty diagnoses can be a result of the lower power levels involved (instrument panel in the driver cab indicates a bulb failure although the function is working). The functional ability of these light failure checks can only be established by the vehicle manufacturer. Operation of the light with alternating current or pulsed direct current is not permitted! The individual light functions may only be operated with a vehicle fuse of max. 3A. In the case of onboard current limitation with the values specified above by the onboard control unit an additional fuse for the lamp is not required.

Features

• Length: 210mm - Width: 32mm - Height: 26mm - Lamp Type: LED - Number of LEDs: 5 - with pipe/Electromagnetic Compatibility (EMC)/with frame
• Light functions: 1 - with indicator (LED)
• Registration Type: SAE/CCC - Fulfils ECE norm.: R6 - Prot.type (IP Code): IP6K9K
• Colour: Crystal clear - LED colour: Yellow - Lens Colour: Crystal clear
• Mounting Type: mounting/Screw Connection - Fastening Type: for horizontal fastening
• State-of-the-art LED technology enables an optimum signal image with low power consumption
• Tested according to IP 6K9, this luminaire is protected against the ingress of dust and water during continuous immersion
• Reverse polarity protection: Incorrect contact between poles ensures that the luminaire is not damaged
• Technical Information

Specifications

• Part number: 2BM011788021
• Hella number: 2BM 011 788-021
• Barcode (EAN): 4082300408874
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: for horizontal fastening
• Fitting Position: Lateral Mounting
• Lamp Type: LED
• Light Function: with indicator (LED)
• Light Design: LED
• LED Colour: yellow (amber)
• Voltage: 24 V
• Length: 210 mm
• Width: 32 mm
• Height: 26 mm
• Cable Length: 500 mm
• Plug Type: open cable ends
• Lens Colour: Crystal clear
• Protection Type per ISO 20653: IP6K9K
• fulfils ECE standard: R6
• Number of light functions: 1
• Number of LEDs: 5
• Colour: Crystal clear
• Registration Type: CCC approved / SAE approved
• Conductor Number: 2

1303-86-2; Diboron trioxide; 1317-36-8; Lead monoxide (lead oxide); 7439-92-1; Lead Electromagnetic Compatibility (EMC); with frame; with pipe Assy./disassy. by qualified personnel required!
