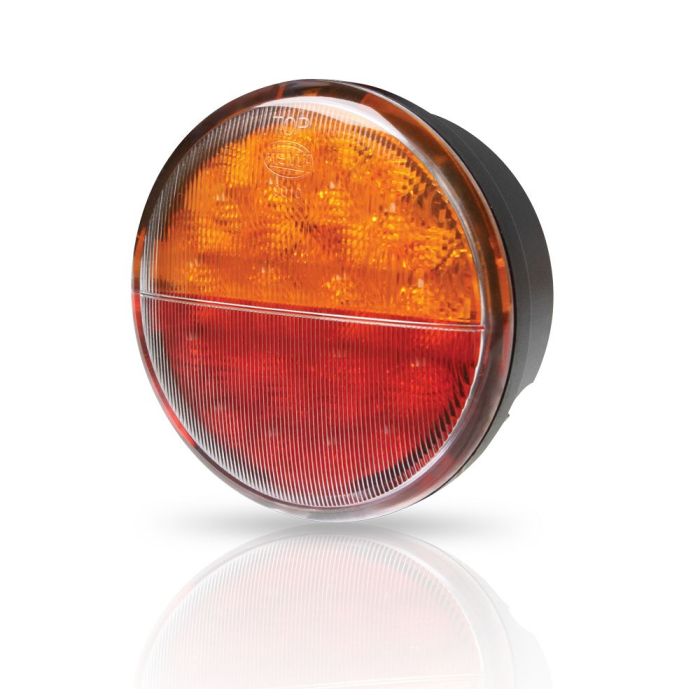

Hella 2399 83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp

2399

Name: Hella 2399 83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp
Brand: Hella
SKU: 2399
Price: 363.77 AUD
Availability: InStock

LED Rear Combination Lamp (Set of 2)

Description

Compact, low profile LED Stop/ Rear Position/ Rear Direction Indicator Lamp ideal for applications with limited mounting space. Features EDT (Enhanced Definition Technology) for the stop signal function and unique UWVO (Ultra Wide Visibility Optics) for significantly improved side visibility. Fully sealed to withstand high-pressure washing. Design matches that of existing round LED signal lamps, Part No 2130, 2390 and 1490. ECE Compliance E9 1538.

Voltage

Dualvolt (12 or 24V DC).

Wattage

Stop - 3W
Rear Position - 1W
Rear Indicator - 3W

Mounting

Flush mount. Incorporates stainless steel mounting bolt.

Protection

Reverse Polarity and 5.0kW Transient Voltage Suppressor (TVS). Sealed against dust and water ingress.

Note

For heavy-duty transport or construction vehicles, Hella recommends the DuraLed Multivolt Signal Lamp Range.

ADR No

6/00:Cat 2a
49/00
49/00

ADR Function

Rear Direction Indicator Lamp
Stop Lamp
Rear Position Lamp

CRN

37114
37116
37115

Accessories & Spare Parts

98069600

Mounting Spacer - 90mm Outside Diameter

98069620

Mounting Spacer - 95mm Outside Diameter

98069640

Mounting Spacer - 100mm Outside Diameter

98069660

Mounting Spacer - 110mm Outside Diameter

Rearlight - 83mm - LED - 12/24V - round - Bolted - ADR/GGVS - Cable: 2500mm - right/left - Quantity: 2

HELLA combination rearlights. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. In the field of rear lighting, too, the advent of LED lighting has ensured a quantum leap in the development of ever new, innovative lighting concepts - and HELLA has been at the forefront of this development from the very beginning. The combination options of light-emitting diodes and advanced optical systems open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

Features

Ø: 83mm - Height: 40mm - Lamp Type: LED
Light functions: 3 - with indicator (LED)/with stop light (LED)/with taillight (LED)
Registration Type: ADR/GGVS - Fulfils ECE norm.: R7/02/R6/01 - Prot.type (IP Code): IP6K7/IP6K9K
Mounting Type: Bolted
LED tail brake indicator Ø 83 mm (left / right) - with ECE approval
The combination rearlight has 3 light functions: Brake light / Tail light / Indicator light
With 16 LEDs and 2.5 m cable

Specifications

Part number: 2399
Hella number: 2SD 959 010-202
Barcode (EAN): 9416325178675
Brand: Hella
Mounting Type: Bolted
Fitting Position: Left / Right
Lamp Type: LED
Light Function: with indicator (LED) / with stop light (LED) / with taillight (LED)
Light Design: LED
Voltage: 12 / 24 V
Power Consumption: 7 W
Height: 40 mm
Diameter: 83 mm
Cable Length: 2500 mm
Plug Type: open cable ends
Lens Colour: red
Protection Type per ISO 20653: IP6K7 / IP6K9K
fulfils ECE standard: R6/01 / R7.02
Number of light functions: 3
Registration Type: ADR/GGVS approved / ECE approved
Shape: round
Product line: 83mm

7439-92-1; Lead Assy./disassy. by qualified personnel required!

More Information

More Information
Manufacturer	Hella
hella_sap	959.010-202
Barcode	9416325178675
