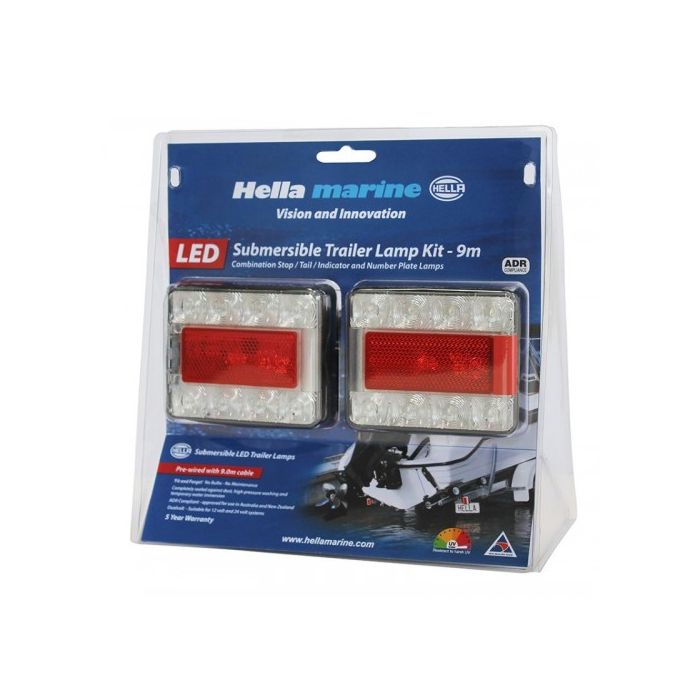

Hella 2395TP9M LED Combination Trailer Lamp Kit

Hella 2395TP9M LED Combination Trailer Lamp Kit

Hella LED Combination Trailer Lamp Kit contains everything you need for a highly visible, reliable and safe Boat trailer lighting solution. The lamps included are submersible, and provide a full combination of functions – including LED stop, rear position and rear indicator lamps, number plate illumination plus an integrated 18cm² red retro reflector.

Kit includes:

• 1 x 2394 LED Rear Position / Stop / Indicator light
• 1 x 2395 LED Rear Position / Stop / Indicator / Number Plate light
• 1 x integrated 18cm² red retro reflector
• 1 x 9m lead

Features:

• IP67 waterproof protection
• Suitable for 12V and 24V systems
• Submersible •Horizontal or vertical mounting option
• Economic to Run – low power consumption and long life
• Power Consumption: Rear position 1W, Indicator 2W, Stop 2W
• Pre-wired for 9m lead
• ADR approved
• Installation via mounting bracket and clicking in the lamp.

Rearlight - 12/24V - ECE/ADR/GGVS - Rear

Features

• Length: 96mm - Width: 80mm - Lamp Type: LED
• with stop light (LED)/with taillight (LED)/with indicator (LED)/with number plate light (LED)
• Registration Type: ECE/ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K

Specifications

• Part number: 2395-TP9M
• Hella number: 2VB 980 720-821
• Barcode (EAN): 9416325227120
• Brand: Hella
• Fitting Position: Rear
• Voltage: 12 / 24 V
• Lamp Type: LED
• Light Function: with indicator (LED) / with licence plate light (LED) / with stop light (LED) / with taillight (LED)
• Registration Type: ADR/GGVS approved / ECE approved
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Length: 96 mm
• Width: 80 mm
• Thickness: 25.2 mm

Assy./disassy. by qualified personnel required!
