Hella 2394 Submersible LED Rear Combination Lamp with 0.5m Cable

Name: Hella 2394 Submersible LED Rear Combination Lamp with 0.5m Cable
Brand: Hella
SKU: 2394
Price: 89.83 AUD
Availability: InStock

Be the first to review this product

Special Price $89.83 Regular Price $94.56

In stock

SKU

2394

Hella 2394 Submersible LED Rear Combination Lamp with 0.5m Cable is available to buy in increments of 1

Hella 2394 Submersible LED Rear Combination Lamp with 0.5m Cable

Details

Hella 2394 Submersible LED Rear Combination Lamp with 0.5m Cable

2394

Submersible LED Rear Combination Lamp - 0.5m Cable

Description

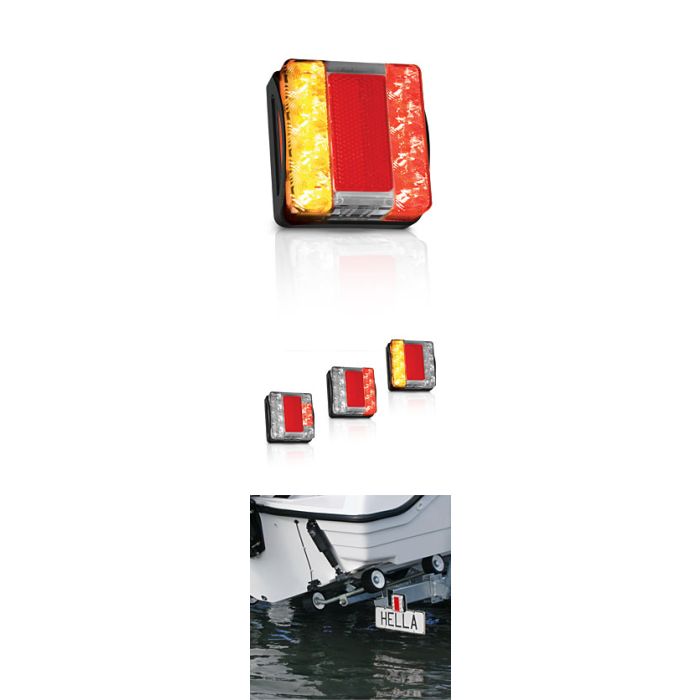

Submersible LED Stop/Rear Position/Rear Direction Indicator Lamp with red retro reflector. Features modern clear lens design and black mounting base with multiple fixing points for easy fitment to most vehicles and trailers. Designed to withstand temporary water immersion and harsh environmental conditions including long-term exposure to very high UV levels. Optic appears clear until illuminated in signal colours.

Voltage

Dualvolt (12/24V DC)

Wattage

Stop 2W
Rear Position 1W
Rear Indicator 2W

Mounting

Surface mount (horizontal or vertical). Lamp clips into mounting base (multiple mounting holes).

Protection

Reverse polarity and built-in transient spike protection. Fully sealed to withstand high-pressure washing and temporary water immersion.

Lead Length

0.5 metre

ADR No

6/00 Cat.2a
49/00
49/00
47/00

ADR Function

Rear Direction Indicator Lamp
Stop Lamp
Rear Position Lamp
Retro Reflector - Red Rear

CRN

42034
42037
42036
15294

Accessories & Spare Parts

9.2394.09

Mounting Spacer - 15mm

Rearlight - LED - 12/24V - mounting/Bolted - ADR/GGVS - Lens Colour: transparent - Cable: 2500mm - Plug: open cable ends - left/right - Box - Quantity: 1

Features

Length: 96mm - Width: 80mm - Height: 24mm - Lamp Type: LED
Light functions: 4 - with taillight (LED)/with stop light (LED)/with indicator (LED)/with reflector
Registration Type: ADR/GGVS - Fulfils ECE norm.: R3/R6/01/R7/02 - Prot.type (IP Code): IP6K7/IP6K9K
Housing Colour: Anthracite/Black - Diffusing Lens Material: Nylon - Lens Colour: transparent
Mounting Type: mounting/Bolted - Fastening Type: for horizontal fastening/for vertical fastening

Specifications

Part number: 2394
Hella number: 2VA 980 720-071
Barcode (EAN): 9416325206361
Brand: Hella
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening / for vertical fastening
Light Design: LED
Lamp Type: LED
Voltage: 12 / 24 V
Fitting Position: Left / Right
Height: 24 mm
Width: 80 mm
Length: 96 mm
Light Function: with indicator (LED) / with reflector / with stop light (LED) / with taillight (LED)
Power Consumption: 5 W
Number of light functions: 4
Plug Type: open cable ends
Protection Type per ISO 20653: IP6K7 / IP6K9K
fulfils ECE standard: R3 / R6/01 / R7.02
Registration Type: ADR/GGVS approved
Cable Length: 2500 mm
Housing Colour: anthracite/black
Lens Colour: transparent
Lens Material: Nylon
Reverse polarity protection: Yes
Quantity Unit: Box
