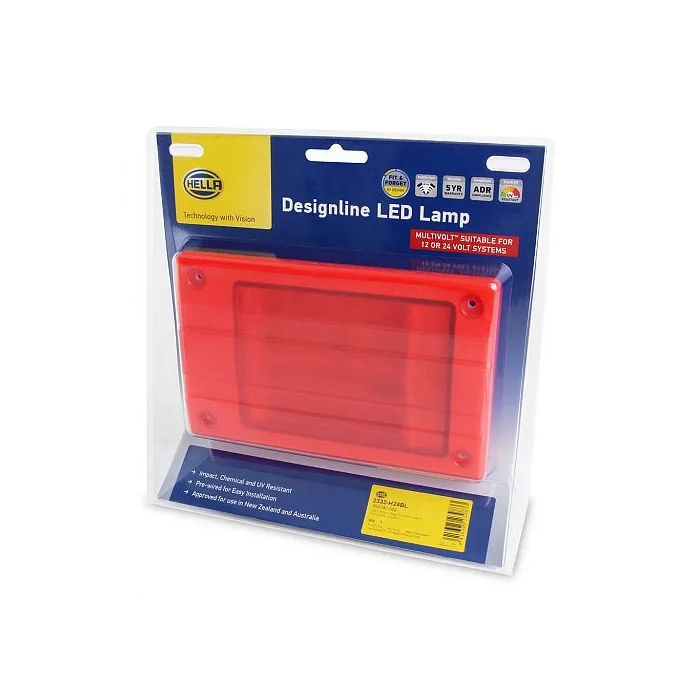

Hella 2332-H24BL Designline LED Module Stop/Rear Position Lamp - Horizontal Mount - Blister Pack

Hella 2332-H24BL Designline LED Module Stop/Rear Position Lamp - Horizontal Mount - Blister Pack

Hella 2332-H24BL Designline LED Module Stop/Rear Position Lamp - Horizontal Mount - Blister Pack

Designline LED Multivolt^™ module designed to update existing bulb type Jumbo or Designline lamps. Features HELLA Ultra Wide Visibility Optics for significantly improved side visibility.

Rearlight - Designline - 12/24V - Bolted - ADR/GGVS - Lens Colour: Red - Cable: 200mm - Rear

Features

• Length: 195mm - Width: 34mm - Height: 125mm - Lamp Type: LED
• Light functions: 2 - with stop light (LED)/with position light (LED)
• Registration Type: ADR/GGVS
• Lens Colour: Red
• Mounting Type: Bolted - Fastening Type: for horizontal fastening

Specifications

• Part number: 2332-H24BL
• Hella number: 2SB 959 040-502
• Barcode (EAN): 9416325239833
• Brand: Hella
• Fitting Position: Rear
• Mounting Type: Bolted
• Voltage from: 9 V
• Voltage to: 33 V
• Voltage: 12 / 24 V
• Fastening Type: for horizontal fastening
• Lamp Type: LED
• Number of light functions: 2
• Light Function: with position light (LED) / with stop light (LED)
• Lens Colour: red
• Power Consumption: 8 W
• Reverse polarity protection: Yes
• Cable Length: 200 mm
• Length: 195 mm
• Width: 34 mm
• Height: 125 mm
• Container Type: Blister Pack
• Registration Type: ADR/GGVS approved
• Product line: Designline

Assy./disassy. by qualified personnel required!
