Hella 2308BULK LED Recess Mount Rear Position / End Outline Lamp - Bulk pack 4
Special Price
$142.73
Regular Price
$150.24
In stock
SKU
2308BULK
Hella 2308BULK LED Recess Mount Rear Position / End Outline Lamp - Bulk pack 4 is available to buy in increments of 1
Hella 2308BULK LED Recess Mount Rear Position / End Outline Lamp - Bulk pack 4
Hella 2308BULK LED Recess Mount Rear Position / End Outline Lamp - Bulk pack 4
Hella 2308BULK LED Recess Mount Rear Position / End Outline Lamp - Bulk pack 4
2308BULK |
LED Rear Position/ Outline Lamp - Red Illuminated (Pack of 4) |
Description |
LED Rear Position/ Outline Lamp with acrylic lens for increased chemical resistance. Low mounting depth for easy installation. Optic appears clear until illuminated. ECE Compliance E13 02 0531. |
|
Voltage |
Multivolt (8-28V DC). |
|
Wattage |
0.4W (12V DC) |
|
Mounting |
Flush mount. Gasket and screw caps included. |
|
Cable Length |
2.5 metres. |
|
ADR No |
49/00 |
|
ADR Function |
Rear Position Lamp or Rear End Outline Lamp |
|
CRN |
25010 |
End Outline Marker Light - 12/24V - mounting - ADR/GGVS - Lens Colour: transparent - Cable: 500mm - Rear - Quantity: 4
Features
- Width: 79mm - Height: 22mm - Lamp Type: LED
- Light functions: 1 - with outline marker light (LED)
- Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K6
- LED colour: Red - Lens Colour: transparent
- Mounting Type: mounting - Fastening Type: Vertical fastening/Horizontal fastening
Specifications
- Part number: 2308BULK
- Hella number: 2BA 959 610-457
- Barcode (EAN): 9416325152842
- Brand: Hella
- Fitting Position: Rear
- Mounting Type: mounting
- Voltage: 12 / 24 V
- Fastening Type: Horizontal fastening / Vertical fastening
- LED Colour: red
- Lens Colour: transparent
- Number of light functions: 1
- Light Function: with outline marker light (LED)
- Reverse polarity protection: Yes
- Lamp Type: LED
- Protection Type per ISO 20653: IP6K6 / IP6K7
- Cable Length: 500 mm
- Power Consumption: 1 W

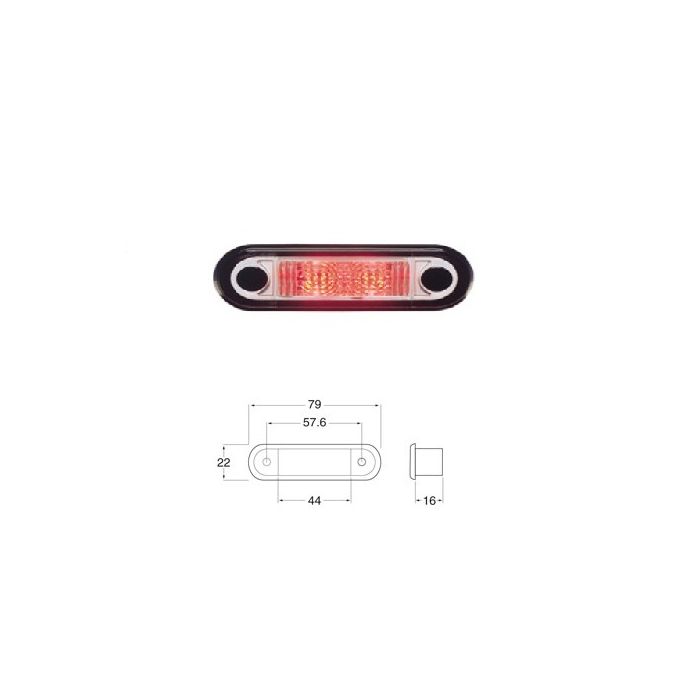

- Width: 79 mm
- Height: 22 mm
- Thickness: 16 mm
- Registration Type: ADR/GGVS approved
Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 959.610-457 |
| Barcode | 9416325152842 |
