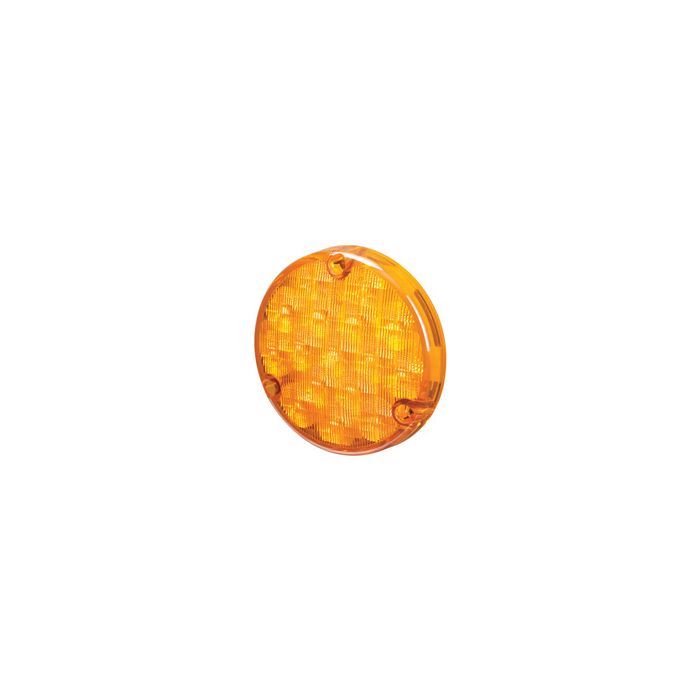

Hella 2165 110mm Round LED Rear Direction Indicator Lamp - Module
Special Price
$223.08
Regular Price
$234.82
In stock
SKU
2165
Hella 2165 110mm Round LED Rear Direction Indicator Lamp - Module is available to buy in increments of 1
Hella 2165 110mm Round LED Rear Direction Indicator Lamp - Module
Hella 2165 110mm Round LED Rear Direction Indicator Lamp - Module
Hella 2165 110mm Round LED Rear Direction Indicator Lamp - Module
2165 |
500 Series LED Rear Direction Indicator Module - Amber |
Description |
Low profile LED Rear Direction Indicator Module specifically designed for commercial transport, buses, caravans and trailers. Features high-intensity LEDs and amber high-impact resistant acrylic lens with unique UWVO (Ultra Wide Visibility Optics) for significantly improved side visibility. Fully sealed to withstand high-pressure washing. |
|
Voltage |
Multivolt (9-33V DC) |
|
Wattage |
3W |
|
Mounting |
3 x Mounting screws included |
|
Protection |
Reverse Polarity and 1.5kW Transient Voltage Suppressor (TVS). Sealed against dust and water ingress. |
|
ADR No |
6/00:Cat 2a |
|
ADR Function |
Rear Direction Indicator Lamp |
|
CRN |
36056 |
Accessories & Spare Parts |
|
| 9.2165.10 | Screw cap - Amber PMMA (pack of 10) |
Direction Indicator - LED - 9V - round - mounting - ADR/GGVS - Cable: 200mm - Rear
Features
- Ø: 110mm - Depth: 48mm - Lamp Type: LED - with overvoltage protection
- Light functions: 1 - with indicator (LED)
- Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K6/IP6K7
- Diffusing Lens Material: Acrylic
- Mounting Type: mounting
Specifications
- Part number: 2165
- Hella number: 2BA 959 932-501
- Barcode (EAN): 9416325176589
- Brand: Hella
- Fitting Position: Rear
- Mounting Type: mounting
- Voltage: 9 V
- Light Design: LED
- Lamp Type: LED
- Number of light functions: 1
- Light Function: with indicator (LED)
- Shape: round
- Diameter: 110 mm
- Depth: 48 mm
- Power Consumption: 3 W
- Reverse polarity protection: Yes
- Protection Type per ISO 20653: IP6K6 / IP6K7
- Cable Length: 200 mm
- Lens Material: Acrylic
- Registration Type: ADR/GGVS approved
with overvoltage protection Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 959.932-501 |
| Barcode | 9416325176589 |
