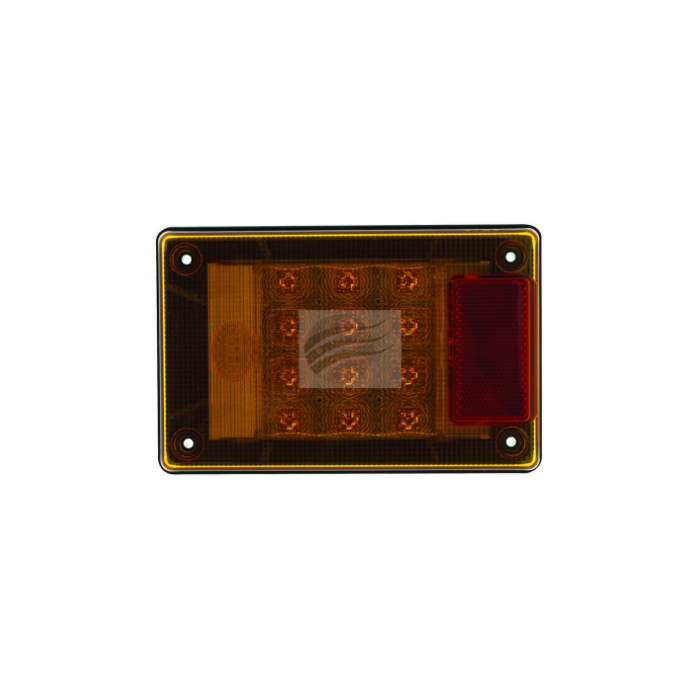

Can be used as a replacement lamp in the Jumbo Combination Lamp Housing Assembly
Amber Illumination
20 x High Intensity White LED's
Amber Optical Hardened Acrylic Lens with Reflex Reflector
Black ABS Plastic Housing with mounting screws and caps included
Surface Mount- low mounting depth for easy installation
Can be mounted Horizontal or VerticalPre-wired 200mm Lead
Fully encapsulated circuitry
Reverse Polarity and Transient Voltage Suppressor
Sealed against Dust and Moisture
Able to withstand High Pressure washing
ADR 6/00 2A Rear Indicator Lamp specifications approved
ADR 47/00 Reflector specifications approved
Refer to ADR 13/00 for mounting instructions
IP6K6 and IP6K9K Rating
Box Qty: 1
2 Year Warranty

Direction Indicator - Jumbo-S - LED - 12/24V - Horizontal Screw Fitting/Vertical Screw Fitting - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 200mm - Rear

Features

Width: 129mm - Height: 129mm - Lamp Type: LED - with reflector
Light functions: 1 - with indicator (LED)
Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K6
Lens Colour: yellow (amber)
Mounting Type: Horizontal Screw Fitting/Vertical Screw Fitting

Specifications

Part number: 2161
Hella number: 2BR 980 761-011
Barcode (EAN): 9416325230038
Brand: Hella
Mounting Type: Horizontal Screw Fitting / Vertical Screw Fitting
Light Design: LED
Lamp Type: LED
Voltage: 12 / 24 V
Fitting Position: Rear
Width: 129 mm
Height: 129 mm
Light Function: with indicator (LED)
Number of light functions: 1
Protection Type per ISO 20653: IP6K6 / IP6K7
Lens Colour: yellow (amber)
Cable Length: 200 mm
Power Consumption: 4 W
Registration Type: ADR/GGVS approved
Product line: Jumbo-S

with reflector Assy./disassy. by qualified personnel required!

More Information

More Information
Manufacturer	Hella
hella_sap	980.761-011
Barcode	9416325230038
