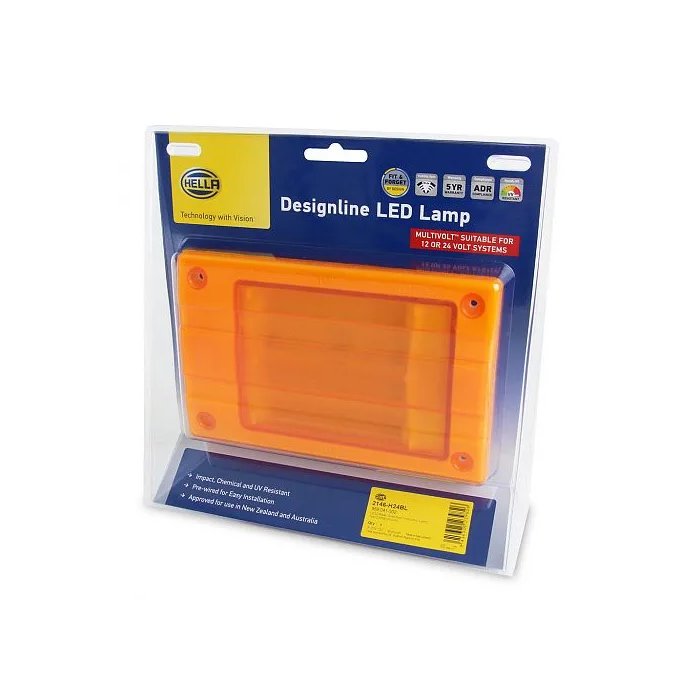

Hella 2146-H24BL Designline LED Module Rear Direction Indicator Lamp - Horizontal Mount (Blister pack)

Hella 2146-H24BL Designline LED Module Rear Direction Indicator Lamp - Horizontal Mount (Blister pack)

Hella 2146-H24BL Designline LED Module Rear Direction Indicator Lamp - Horizontal Mount (Blister pack)

Designline LED Multivolt^™ module designed to update existing bulb type Jumbo or Designline lamps. Features HELLA Ultra Wide Visibility Optics for significantly improved side visibility.

Hella Compatibility Solution HCS
Hella P/N 2146-HCS and 2146-VCS feature HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.

Direction Indicator - Designline - Bolted - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 200mm - Rear

Features

• Width: 195mm - Height: 125mm - Lamp Type: LED
• Light functions: 1 - with indicator (LED)
• Registration Type: ADR/GGVS
• Lens Colour: yellow (amber)
• Mounting Type: Bolted - Fastening Type: for horizontal fastening

Specifications

• Part number: 2146-H24BL
• Hella number: 2BA 959 041-502
• Barcode (EAN): 9416325239826
• Brand: Hella
• Fitting Position: Rear
• Mounting Type: Bolted
• Voltage from: 9 V
• Voltage to: 33 V
• Fastening Type: for horizontal fastening
• Lamp Type: LED
• Number of light functions: 1
• Light Function: with indicator (LED)
• Lens Colour: yellow (amber)
• Power Consumption: 6 W
• Reverse polarity protection: Yes
• Cable Length: 200 mm
• Width: 195 mm
• Thickness: 34 mm
• Height: 125 mm
• Container Type: Blister Pack
• Registration Type: ADR/GGVS approved
• Product line: Designline

Assy./disassy. by qualified personnel required!
