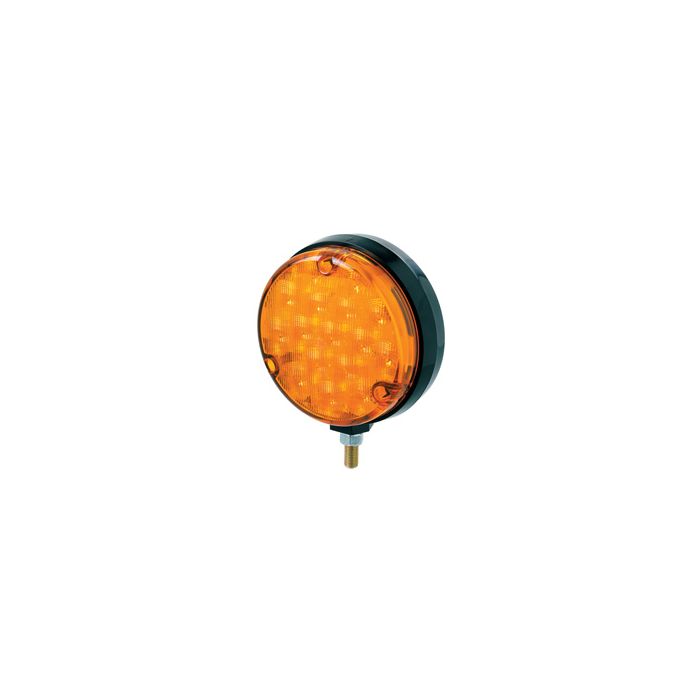

Hella 2128LED LED Front Direction Indicator Lamp (Cat.1)
Special Price
$288.88
Regular Price
$304.08
In stock
SKU
2128LED
Hella 2128LED LED Front Direction Indicator Lamp (Cat.1) is available to buy in increments of 1
Hella 2128LED LED Front Direction Indicator Lamp (Cat.1)
Hella 2128LED LED Front Direction Indicator Lamp (Cat.1)
Hella 2128LED LED Front Direction Indicator Lamp (Cat.1)
2128LED |
500 Series LED Front Direction Indicator - Amber |
Description |
LED Front Direction Indicator fitted with high-intensity LED Insert, Part No. 2105 and black housing. Fully sealed to withstand high-pressure washing. |
|
Voltage |
Multivolt (9-33V DC) |
|
Wattage |
8W |
|
Mounting |
Single bolt mounting. Seals, grommets and screws included. |
|
Protection |
Reverse Polarity and 1.5kW Transient Voltage Suppressor (TVS). Sealed against dust and water ingress. |
|
ADR No |
6/00:Cat 1 |
|
ADR Function |
Front Direction Indicator Lamp |
|
CRN |
36805 |
Accessories & Spare Parts |
|
| 2105 | LED Module, Amber |
| 9.2397.40 | Gasket |
| 2.6702.03 | Backing plate |
| 9.2105.10 | Screw cap - Amber PC (pack of 10) |
Direction Indicator - LED - round - Bolted - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 200mm - Front - Quantity: 1
Features
- Ø: 120mm - Width: 62mm - Lamp Type: LED
- Light functions: 1 - with indicator
- Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K6/IP6K7
- Lens Colour: yellow (amber)
- Mounting Type: Bolted
Specifications
- Part number: 2128LED
- Hella number: 2BA 959 932-301
- Barcode (EAN): 9416325177371
- Brand: Hella
- Fitting Position: Front
- Mounting Type: Bolted
- Voltage from: 9 V
- Voltage to: 33 V
- Light Design: LED
- Lamp Type: LED
- Power Consumption: 4 W
- Number of light functions: 1
- Light Function: with indicator
- Lens Colour: yellow (amber)
- Shape: round
- Diameter: 120 mm
- Width: 62 mm
- Cable Length: 200 mm
- Reverse polarity protection: Yes
- Protection Type per ISO 20653: IP6K6 / IP6K7
- Registration Type: ADR/GGVS approved
Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 959.932-301 |
| Barcode | 9416325177371 |
