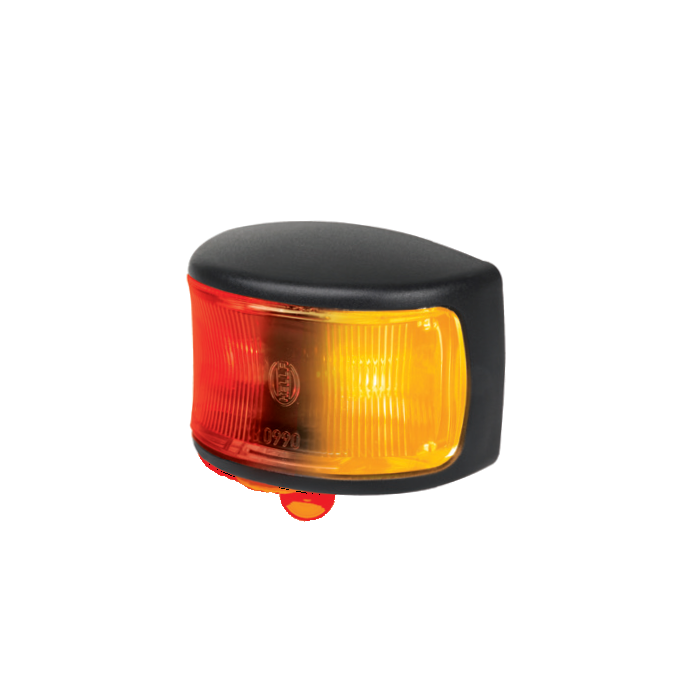

Hella 2073 DuraLED Heavy Duty Side Marker Lamp with DT Connector

Hella 2073 DuraLED Heavy Duty Side Marker Lamp with DT Connector

Hella 2073 DuraLED Heavy Duty Side Marker Lamp with DT Connector

Mounting:

Surface mount.

Suitable for horizontal mounting.

Voltage:

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption: <1W

Protection:

• Reverse polarity protection.
• Fully sealed against dust, high-pressure washing and temporary water immersion.

Spare Parts

• 4960-P 2 pole DT plug, wedge and 2 contacts.
• 9.2073.09 Black Nylon housing

Lens Material:

Grilamid®

Compliance

ADR 45/01

Side Marker Light - DuraLED - LED - 12/24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: Red/yellow (amber) - Plug: DEUTSCH plug - right/left - Quantity: 1

Features

• Length: 60mm - Width: 46mm - Height: 43mm - Lamp Type: LED - Number of LEDs: 2
• Light functions: 1 - with side marker light
• Registration Type: ADR/GGVS - fulfils ADR/GGVS norm: 45/01
• Housing with Plastic Lid - Housing Colour: Black - Lens Colour: Red/yellow (amber)
• Mounting Type: Screw Connection/mounting - Fastening Type: for horizontal fastening

Specifications

• Part number: 2073
• Hella number: 2PS 980 990-001
• Barcode (EAN): 9416325231004
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: for horizontal fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 43 mm
• Width: 46 mm
• Length: 60 mm
• Light Function: with side marker light
• Number of light functions: 1
• fulfils ADR/GGVS standard: 45/01
• Registration Type: ADR/GGVS approved
• fulfils test standard: RCM
• Number of LEDs: 2
• Housing Type: Housing with Plastic Lid
• Plug Type: DEUTSCH plug
• Housing Colour: black
• Lens Colour: red / yellow (amber)
• Power Consumption: 1 W
• Temperature range from: -40°C
• Temperature range to: 60°C
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
