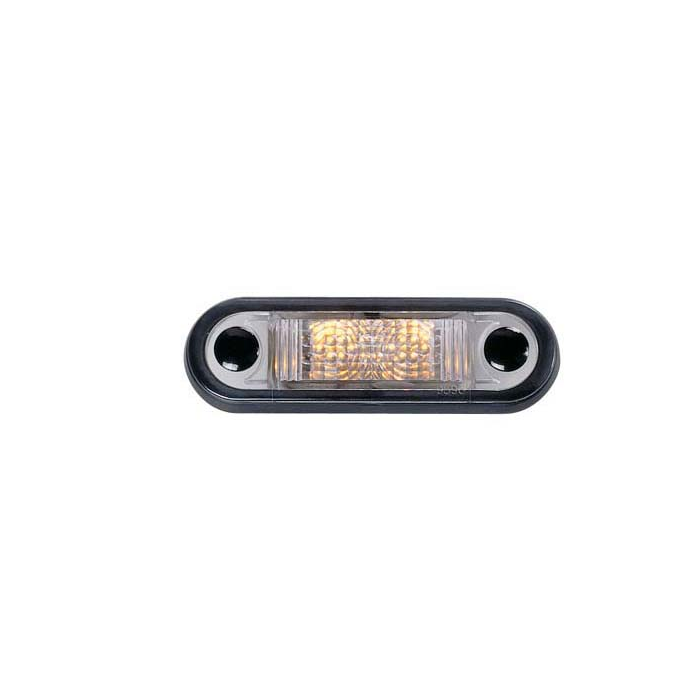

Hella 2056 LED Recess Mount Front End Outline Lamp
Special Price
$38.84
Regular Price
$40.88
In stock
SKU
2056
Hella 2056 LED Recess Mount Front End Outline Lamp is available to buy in increments of 1
Hella 2056 LED Recess Mount Front End Outline Lamp
Hella 2056 LED Recess Mount Front End Outline Lamp
Hella 2056 LED Recess Mount Front End Outline Lamp
2056 |
LED Front End Outline Lamp - Amber Illuminated |
Description |
LED Front End Outline Lamp with acrylic lens for increased chemical resistance. Low mounting depth for easy installation. Optic appears clear until illuminated. |
|
Voltage |
Multivolt (8-28V DC). |
|
Wattage |
0.4W (12V DC) |
|
Mounting |
Flush mount. Gasket and screw caps included. |
|
Cable Length |
0.5 metre |
|
Note |
Suitable for trailers only. |
|
ADR No |
49/00 |
|
ADR Function |
Front End Outline Lamp |
|
CRN |
27380 |
End Outline Marker Light - 12/24V - mounting - ADR/GGVS - Lens Colour: transparent - Cable: 500mm - Front - Quantity: 1
Features
- Width: 79mm - Height: 22mm - Lamp Type: LED
- Light functions: 1 - with outline marker light (LED)
- Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K6
- LED colour: Amber - Lens Colour: transparent
- Mounting Type: mounting - Fastening Type: Horizontal fastening
Specifications
- Part number: 2056
- Hella number: 2PF 959 590-341
- Barcode (EAN): 9416325147565
- Brand: Hella
- Fitting Position: Front
- Mounting Type: mounting
- Voltage: 12 / 24 V
- Fastening Type: Horizontal fastening
- LED Colour: yellow (amber)
- Lens Colour: transparent
- Number of light functions: 1
- Light Function: with outline marker light (LED)
- Reverse polarity protection: Yes
- Lamp Type: LED
- Protection Type per ISO 20653: IP6K6 / IP6K7
- Cable Length: 500 mm
- Power Consumption: 1 W
- Width: 79 mm
- Height: 22 mm
- Thickness: 16 mm
- Registration Type: ADR/GGVS approved
Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 959.590-341 |
| Barcode | 9416325147565 |
