Hella 1TL998570641 HEADLAMP DE-A EB MG12 M60 1TL 998.570-641

Hella 1TL 998 570-641 HEADLAMP DE-A EB MG12 M60 1TL 998.570-641

Specifications:

DE/Symmetric/Halogen-Headlight - Modul 60 - 12V - round - ECE - transparent - both sides

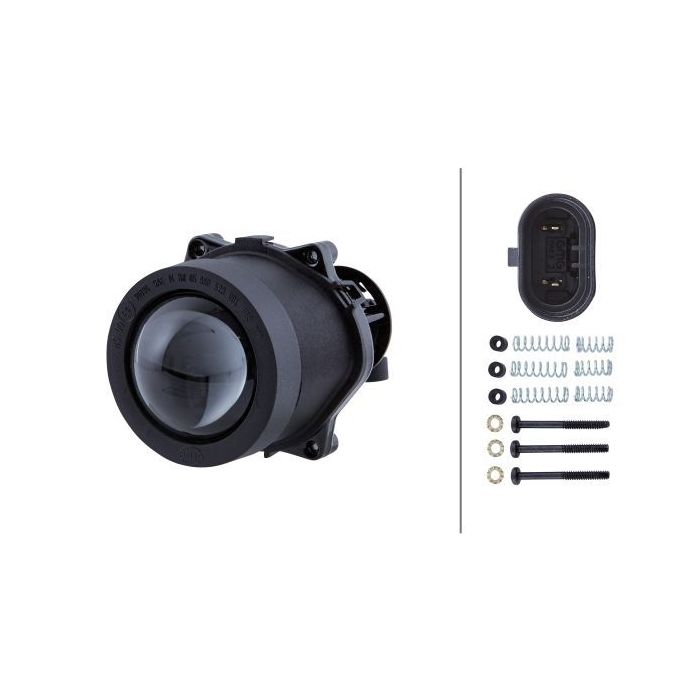

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

Features

• Width: 103mm - Height: 88mm - Depth: 157mm - Lamp Type: HB3 - with bulb
• Light functions: 1 - for low beam/without position light
• Registration Type: ECE - for right-hand traffic/for left-hand traffic - Prot.type (IP Code): IP65
• Housing Colour: Black - Lens Colour: transparent
• Mounting Type: Fitting - Fastening Type: Frame holder
• Easy integration into customised design solutions thanks to compact dimensions
• Excellent light output and homogeneous road illumination despite smallest size
• Low weight

Specifications

• Part number: 1TL998570641
• Hella number: 1TL 998 570-641
• Barcode (EAN): 9002920158879
• Brand: Hella
• Mounting Type: Fitting
• Fastening Type: Frame holder
• Lamp Type: HB3
• Light Design: DE / Halogen / Symmetric
• Voltage: 12 V
• Fitting Position: both sides
• Width: 103 mm
• Height: 88 mm
• Depth: 157 mm
• Light Function: for low beam / without position light
• Number of light functions: 1
• Protection Type per ISO 20653: IP65
• Registration Type: ECE approved
• Left-hand/Right-hand Traffic: for left-hand traffic / for right-hand traffic
• Shape: round
• Housing Colour: black
• Illuminated Area: 60 mm
• Lens Colour: transparent
• Product line: Modul 60

with bulb 7439-92-1; Lead Assy./disassy. by qualified personnel required!
