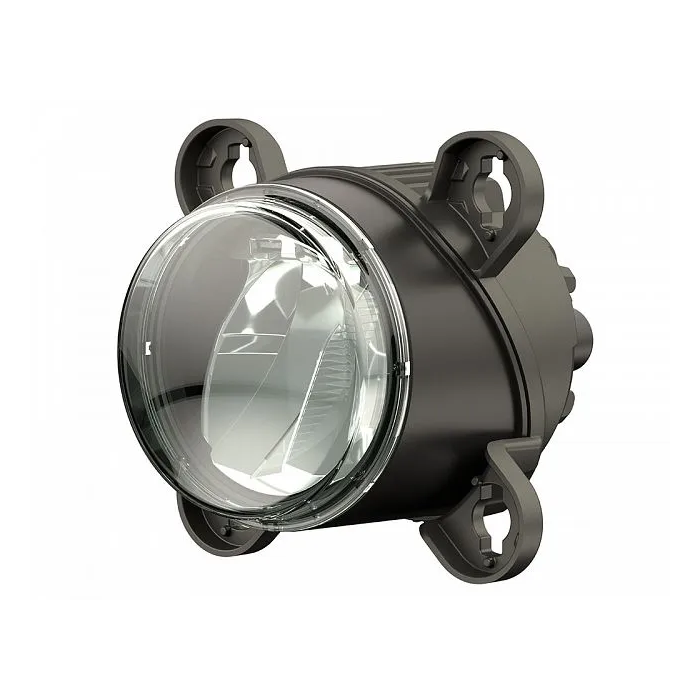

Hella 1M0015050011 90mm Headlamp Low Beam

Hella 1M0015050011 90mm Headlamp Low Beam

Hella 1M0015050011 90mm Headlamp Low Beam

New from HELLA, 90mm LED headlamps are designed as cost effective replacements for halogen headlamps found on many New Zealand manufactured buses and coaches. Featuring a robust aluminium housing, tough polycarbonate lens, and an innovative optical reflector system, the new headlamps produce a controlled, homogeneous distribution of light synonymous with the HELLA brand.
The new 90mm headlamps are an excellent upgrade over halogen lamps to deliver the advantages of a maintenance-free service life and reduced operating costs, positioned at a competitive price and performance level between HELLA’s halogen and premium LED headlamps.

• Cost effective replacement for Halogen headlamps
• Multivolt for 12V and 24V vehicles
• Crisp white light
• Maintenance free design
• 5 year warranty

LED-Headlight - 90mm Essential R80 - 12/24V - round - ECE - transparent - Plug: DEUTSCH plug - right/left

The R 80 features an innovative reflector design that provides particularly homogeneous lighting that neither distracts nor fatigues the driver.

Thanks to the high colour temperature of the LEDs, the illumination appears more similar to daylight and the driver sees much better and does not tire as quickly. The driving comfort increases.

The R 80 LED headlamps offer a long, maintenance-free service life and reduce operating costs compared to conventional halogen products, even in vehicles with low usage.

The robust design with aluminium heat sink and impact resistant polycarbonate lens allows the use in rough environments and under maximum demands.

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The Bi-LED modules L70 or L5570 as well as the BI halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

Features

• Width: 117mm - Height: 118mm - Depth: 123mm - Lamp Type: LED
• Light functions: 2 - with low beam (LED)
• Registration Type: ECE - for left-hand traffic - Prot.type (IP Code): IPX9K /IPX4K
• Housing Colour: Black - Diffusing Lens Material: Plastic - Lens Colour: transparent
• Mounting Type: Fitting
• LED lighting also increases safety, especially in comparison with halogen headlights.

Specifications

• Part number: 1M0015050011
• Hella number: 1M0 015 050-011
• Barcode (EAN): 4082300765854
• Brand: Hella
• Mounting Type: Fitting
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Width: 117 mm
• Height: 118 mm
• Depth: 123 mm
• Outer Diameter: 117 mm
• Light Function: with low beam (LED)
• Number of light functions: 2
• Protection Type per ISO 20653: IPX4K / IPX9K
• Dust Cover: with dust cover
• Registration Type: ECE approved
• Plug Type: DEUTSCH plug
• Left-hand/Right-hand Traffic: for left-hand traffic
• Shape: round
• Housing Colour: black
• Illuminated Area: 90 mm
• Connector type: FEP
• Lens Material: Plastic
• Lens Colour: transparent
• Product line: 90mm Essential

Assy./disassy. by qualified personnel required!
