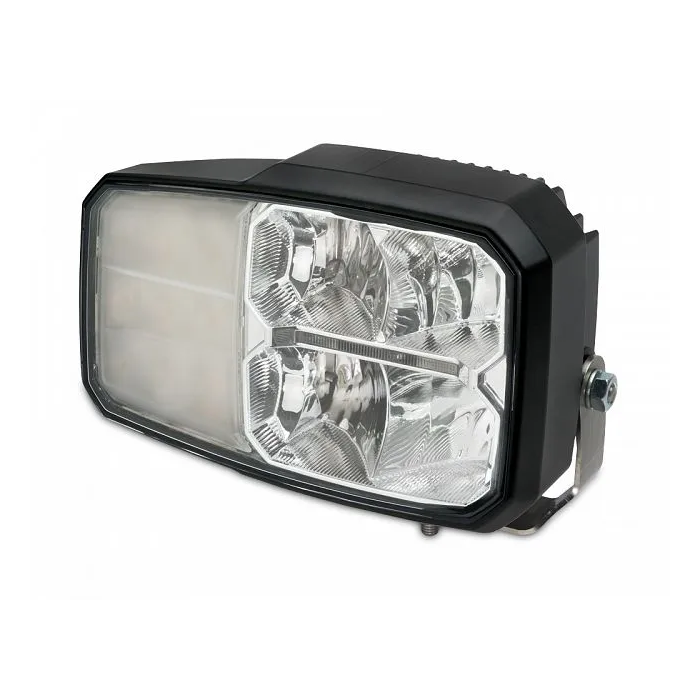

Hella 1LE996374031 LED Combination Headlamp - Left Hand

Hella 1LE996374031 LED Combination Headlamp - Left Hand

Hella 1LE996374031 LED Combination Headlamp - Left Hand

The C140 LED is the first combination headlamp on the market to feature all light functions in LED technology: low beam, high beam, indicator and position light (as LED light guide).

The special freeform reflector together with the LED light source produces significantly better light than headlamps with halogen bulbs. With its daylight colour, the light appears far brighter to the eye and makes working at night less tiring. The housing of the C140 LED is made of aluminum and features cooling fins on its rear, which ensures heat removal from the high-power LEDs.

A specially developed thermal design with temperature sensors prevents the headlamp from overheating. With its robust, heavy-duty bracket and a lens made of toughened, shatterproof plastic, the headlamp is particularly resistant to vibration and impact. Ideal for the tough conditions on construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc).

The LED technology enables a lifetime of over 20,000 hours. The C140 LED headlamp is a fully sealed, maintenance-free system: it eliminates the need to replace bulbs, saving time and money for the final consumer. The low LED power consumption compared to conventional halogen headlamps also saves fuel, further driving down costs. The C140 LED meets all ECE requirements.

LED-Headlight - C140 - 24/12V - SAE/ECE - transparent - Plug: DEUTSCH plug - left

The C140 LED is the first combination headlight on the market to feature all light functions in LED technology: low beam, high beam, indicator and position light (as LED light guide). The special freeform reflector together with the LED light source produces significantly better light than headlights with halogen bulbs. With its daylight colour, the light appears far brighter to the eye and makes working at night less tiring. The housing of the C140 LED is made of aluminum and features cooling fins on its rear, which ensure heat removal from the high-power LEDs. A specially developed thermal design with temperature sensors prevents the headlight from overheating. With its robust, heavy-duty bracket and a lens made of toughened, shatterproof plastic, the headlight is particularly resistant to vibration and impact. Ideal for the tough conditions on construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc.). The LED technology enables a lifetime of over 20,000 hours. The C140 LED headlight is a fully sealed, maintenance-free system: it obviates the need to replace bulbs, saving time and money for the final consumer. The low LED power consumption compared to conventional halogen headlights also saves fuel, further driving down costs. The C140 LED meets all ECE and SAE requirements and is both approvable and ideal for use almost anywhere in the world. Additional approvals are required for use in China.

Features

• Width: 248mm - Height: 167mm - Depth: 114mm - Lamp Type: LED
• Light functions: 4 - with high beam/with indicator/with position light/with low beam
• Registration Type: SAE/ECE - for left-hand traffic - Prot.type (IP Code): IP6K9K
• Housing Colour: Black - Diffusing Lens Material: Plastic - Lens Colour: transparent
• Mounting Type: mounting - Fastening Type: Horizontal fastening
• Combination main headlamp in 100% LED technology
• Excellent light distribution
• For extreme and highly demanding applications

Specifications

• Part number: 1LE996374031
• Hella number: 1LE 996 374-031
• Barcode (EAN): 9002920154406
• Brand: Hella
• Mounting Type: mounting
• Fastening Type: Horizontal fastening
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 / 24 V
• Fitting Position: Left
• Width: 248 mm
• Height: 167 mm
• Depth: 114 mm
• Light Function: with high beam / with indicator / with low beam / with position light
• Number of light functions: 4
• Protection Type per ISO 20653: IP6K9K
• Registration Type: ECE approved / SAE approved
• Plug Type: DEUTSCH plug
• Left-hand/Right-hand Traffic: for left-hand traffic
• Housing Colour: black
• Connector type: DEUTSCH
• Lens Material: Plastic
• Lens Colour: transparent
• Product line: C140

Assy./disassy. by qualified personnel required!
