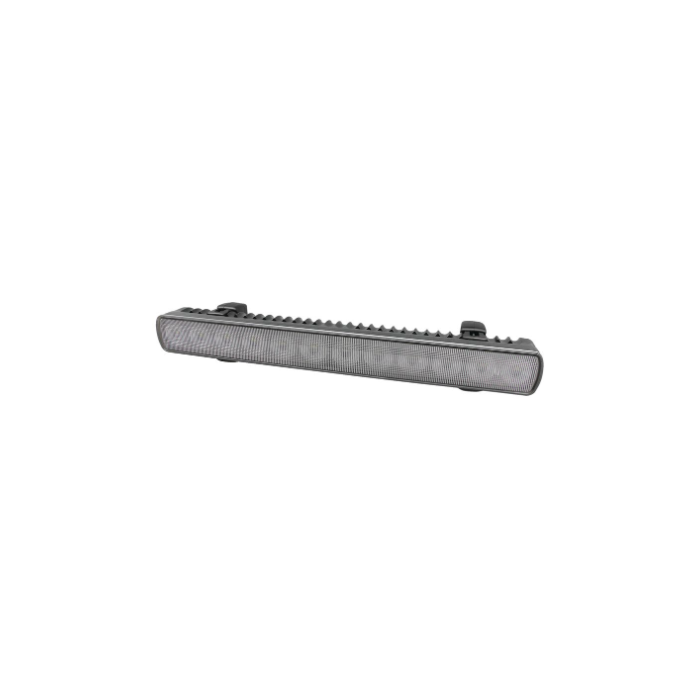

Hella 1GJ958040501 12 LED BL350 Worklamp LightBar Wide Flood Beam 9-33V 25W 2,200

Hella 1GJ958040501 12 LED BL350 Worklamp LightBar Wide Flood Beam 9-33V 25W 2,200

Hella 1GJ958040501 12 LED BL350 Worklamp LightBar Wide Flood Beam 9-33V 25W 2,200

Mounting

Upright or Pendant.

Voltage

Multivolt™ (9-33V DC)

Power Consumption

25W

Max. Light Output

2200 lumens

Protection

• Reverse polarity and voltage spike protection.
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

2.5 metres

Housing

Thermally Conductive Plastic

Lens Material

Grilamid®

LED-Worklight - Light Bar LB350 - 24/12V - 2200lm - mounting/Bolted - Vertical/Suspended - Long-range illumination - Cable: 2500mm - Plug: open cable ends

The LED Light Bar 350 offers a very wide light distribution, which evenly illuminates the entire working area.

The thermally conductive plastic housing offers a wide range of mounting options, is particularly light and completely corrosion-resistant.

The use of particularly efficient light-emitting diodes makes the LED Light Bar 350 a particularly energy-saving spotlight.

The electronics are multi-voltage capable and guarantee constant brightness even with fluctuating operating voltage.

In addition, temperature sensors protect the worklight from overheating. Only in this way can the long service life of the LEDs and safe working at night be guaranteed.

Thanks to its innovative design, the LED Light Bar 350 by HELLA is suitable for many target groups and areas of application. This LED worklight was designed for maximum flexibility. The thermally conductive plastic housing offers a wide range of mounting options, is particularly lightweight and completely corrosion-resistant. The LED Light Bar 350 offers a very wide light distribution, illuminating the entire working area evenly. The colour temperature of 5,000 Kelvin corresponds to natural daylight. This significantly improves contrast perception, displays colours better and significantly reduces fatigue of the human eye. Thanks to the use of particularly efficient light-emitting diodes, the LED Light Bar 350 is an especially energy-saving spotlight. With only 25 watts of energy consumption, a powerful light output of 2,200 measured lumens is achieved (in comparison: 2 x halogen H3: approx. 2,200 lumen at 110 watt). The electronics are multi-voltage compatible and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night.

Features

• Lamp Type: LED - Number of LEDs: 12 - Power consumption: 25W - Colour Temperature: 5000K
• Patterned diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Glass
• Width: 350mm - Height: 56mm - Depth: 81mm

Specifications

• Part number: 1GJ958040501
• Hella number: 1GJ 958 040-501
• Barcode (EAN): 9416325235705
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: Suspended / Vertical
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 56 mm
• Width: 350 mm
• Depth: 81 mm
• Light Distribution: Long-range illumination
• fulfils ECE standard: R10
• fulfils test standard: RCM
• Plug Type: open cable ends
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Luminous Flux: 2200 lm
• Colour Temperature: 5000 K
• Number of LEDs: 12
• Power Consumption: 25 W
• Cable Length: 2500 mm
• Housing Type: Synthetic Material Housing
• Housing Colour: black
• Lens Material: Glass
• Lens Type: patterned lens
• Product line: Light Bar LB350

Assy./disassy. by qualified personnel required!
