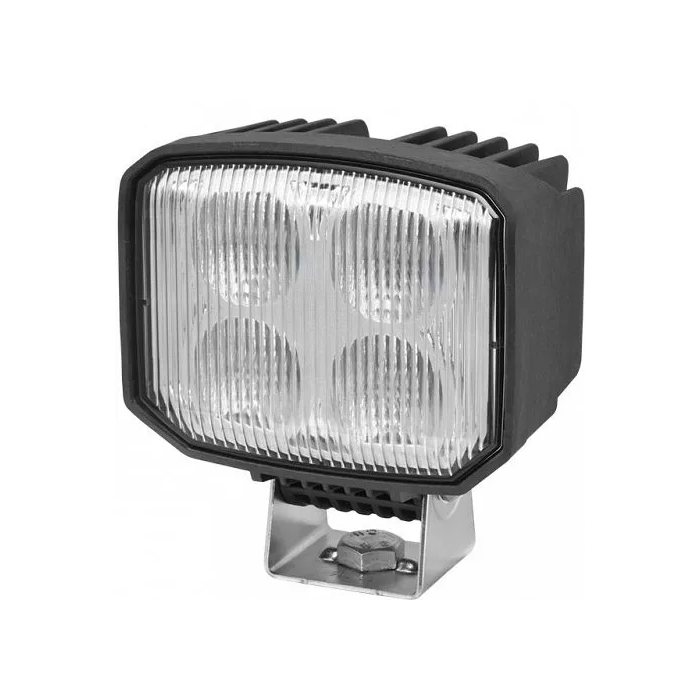

Hella 1GA996588201 Power Beam S‑Series Spread LED Work Lamp

Hella 1GA996588201 Power Beam S‑Series Spread LED Work Lamp

LED-Worklight - Power Beam S - 12/24V - 1850lm - Bolted/mounting - Swivelling Mounting Bracket/Suspended/Vertical - Short distance lighting - Plug: DEUTSCH plug - Quantity: 1

Robust LED worklight with corrosion-resistant plastic housing. For close range-illumination.

The Power Beam S-series offers robust LED worklights with different light performance for close-range or long-range illumination. These are suitable for standing and hanging installation. The plastic housing is lightweight and corrosion-resistant. Cooling fins ensure optimum heat dissipation of the high-performance LEDs. The low energy consumption is also convincing.

Features

• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 19W - Colour Temperature: 6500K
• Patterned diffusing lens
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K7/IP6K9K
• Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Width: 112mm - Height: 127mm - Depth: 87mm - Electromagnetic Compatibility (EMC)
• Ideally suited as a replacement for halogen worklights
• With cooling fins for effective heat dissipation
• With 4 high-power LEDs and low power consumption of only 19 W
• Protection class: IP 6K7, IP 6K9K; type test: UKCA, ECE-R10, RCM, ADR / GGVSEB; EMC protection: CISPR 25

Specifications

• Part number: 1GA996588201
• Hella number: 1GA 996 588-201
• Barcode (EAN): 9002920171526
• Brand: Hella
• Mounting Type: Bracket mounting
• Lamp Type: LED
• Light Design: LED
• Colour Temperature: 6500 K
• Luminous Flux: 1850 lm
• Theoretical luminous flux: 2313 lm
• Voltage from: 9 V
• Voltage to: 32 V
• Voltage: 12 / 24 V
• Power Consumption: 19 W
• Width: 112 mm
• Height: 95 mm
• Overall Height: 127 mm
• Depth: 87 mm
• Lens Material: PC (Polycarbonate)
• Plug Type: DEUTSCH plug
• Housing material: Plastic
• Housing Colour: black
• Lens Type: patterned lens
• Lens Colour: Crystal clear
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Temperature range from: -40°C
• Temperature range to: 85°C
• fulfils ECE standard: R10
• fulfils EMC/CISPR standard: Class 4 / Class 5
• Weight: 397 g
• Shape: Square
• Light colour: white
• Light Distribution: Short-Range Illumination
• Number of LEDs: 4
• Registration Type: ADR/GGVS approved / ECE approved / RCM approved
• Product line: Power Beam S

Assy./disassy. by qualified personnel required!
