Hella 1GA007506001 Work Lamp

Hella 1GA007506001 Work Lamp

Hella 1GA007506001 Work Lamp

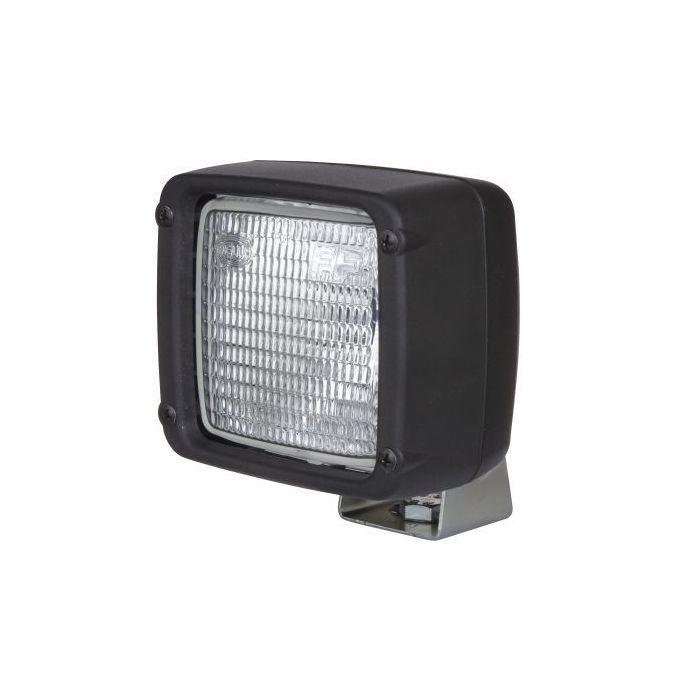

Halogen-Worklight - Ultra Beam - 24/12V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Short distance lighting - Plug: AMP

Despite its compact dimensions, the reflector ensures excellent lighting performance. An H3 bulb is used as the light source.

The headlamp insert can be rotated. This makes the unit suitable for upright and suspended mounting.

The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.

The housing is provided with a protruding edge to protect the diffusing lens. Thanks to its compact dimensions, the worklight can be used universally.

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.

Features

• OHV
• OE References
• Lamp Type: H3 - Power consumption: 55/70W
• Patterned diffusing lens
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K9K
• Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Glass
• Width: 112mm - Height: 127mm - Depth: 97mm - without bulbs/without cable
• The aluminium reflector of the worklight is based on free-form technology.
• Brief Information
• *** Original spare part

Specifications

• Part number: 1GA007506001
• Hella number: 1GA 007 506-001
• Barcode (EAN): 4082300045574
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: Swivelling Mounting Bracket / Vertical
• Lamp Type: H3
• Light Design: Halogen
• Voltage: 12 / 24 V
• Power Consumption: 55 / 70 W
• Width: 112 mm
• Height: 127 mm
• Depth: 97 mm
• Lens Material: Glass
• Plug Type: AMP
• Housing Type: Synthetic Material Housing
• Housing Colour: black
• Lens Type: patterned lens
• Protection Type per ISO 20653: IP6K9K
• Light Distribution: Short-Range Illumination
• Registration Type: ADR/GGVS approved
• Product line: Ultra Beam

OE References without bulbs; without cable Assy./disassy. by qualified personnel required!
