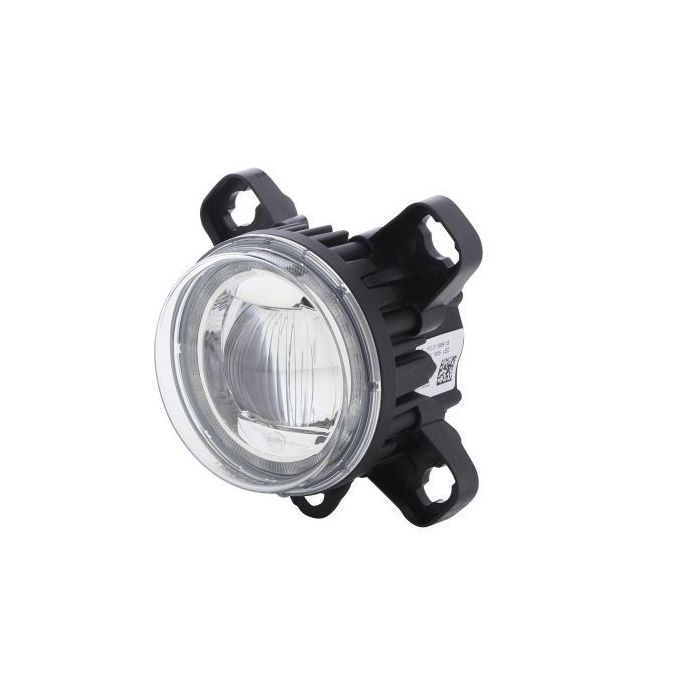

Hella 1F0011988131 HEADLAMP DE-ZF DRL PO MD12/24 1F0 011.988-131

Hella 1F0011988131 HEADLAMP DE-ZF DRL PO MD12/24 1F0 011.988-131

LED/DE-Spotlight - 90mm Performance L4060 - 12/24V - round - Reference number: 12.5 - SAE - Clear diffusing lens - Crystal clear - right/left

LED headlights increase safety. Thanks to the daylight-like illumination, the driver sees much better and does not tire as quickly.

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

Features

• OHV
• OE References
• Width: 126mm - Height: 91mm - Depth: 91mm - Fitting Depth: 55mm - Overall Height: 126mm - Lamp Type: LED - with LED - without carrier frame
• Light functions: 3 - with position light (LED)/with high beam (LED)/with daytime running light (LED)
• Registration Type: SAE - Fulfils ECE norm.: R112/R10/R149/R148/R7/R87 - fulfils SAE norm: SSB 674
• Metal Housing - Housing Colour: Black - Lens Colour: Crystal clear
• Mounting Type: Screw Connection - Fastening Type: 3-point attachment
• Maximum freedom of design and technology thanks to modular system.
• More illumination and safety through innovative LED technology.
• Striking design: Annular homogeneous daytime running light / position light or direction indicator
• Robust die-cast aluminium housing with integrated electronics.
• Brief Information
• *** Original spare part

Specifications

• Part number: 1F0011988131
• Hella number: 1F0 011 988-131
• Barcode (EAN): 4082300496895
• Brand: Hella
• Mounting Type: Screw Connection
• Fastening Type: 3-point attachment
• Light Design: DE / LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 91 mm
• Overall Height: 126 mm
• Width: 126 mm
• Depth: 91 mm
• Fitting Depth: 55 mm
• Light Function: with daytime running light (LED) / with high beam (LED) / with position light (LED)
• Number of light functions: 3
• Registration Type: SAE approved
• fulfils SAE standard: SSB 674
• fulfils ECE standard: R10 / R112 / R148 / R149 / R7 / R87
• Reference number: 12.5
• Housing Colour: black
• Lens Colour: Crystal clear
• Shape: round
• Housing Type: Metal Housing
• Lens Type: clear lens
• Product line: 90mm Performance

OE References without carrier frame with LED 7439-92-1; Lead Assy./disassy. by qualified personnel required!
