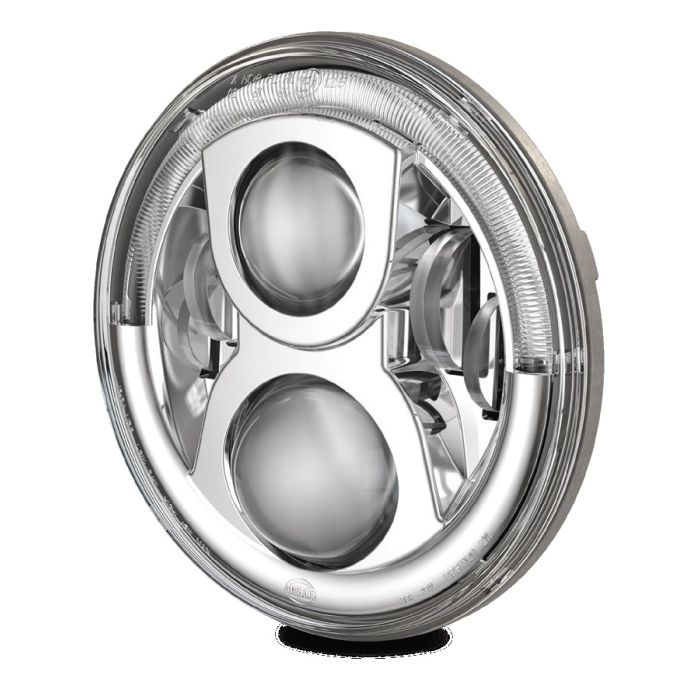

Hella 1058LED LED 7" Headlamp High Low Beam with DRL

Hella 1058LED LED 7" Headlamp High Low Beam with DRL

Hella 1058LED LED 7" Headlamp High Low Beam with DRL

7" round Multivolt™ LED Headlamp range, designed to be a direct replacement for 7" halogen light inserts. Covered by HELLA's extensive peace of mind five year warranty and backed by nationwide support, the chrome finished 178mm round lights combine the latest in state of the art LED technology, circuit design and precision optics to create high intensity light output.

The UV-resistant retrofit headlamps are available in three versions – High Beam, High/Low Beam and High/Low Beam with Daytime Running Light and Front Position. The lights are sealed against water and dust ingress, approved for use in New Zealand and Australia, easy to install and don't require any globe replacements.

The tough die-cast aluminium housing, hard-coated polycarbonate lens and superior beam pattern make the HELLA’s 7" Round LED Headlamp range perfect for use on and off-road. They offer outstanding visibility, safety, and durability – making them one of the most advanced 7" LED headlamps available.

Part Number: 1056LED or 1058LED (With Daytime Running Lamp/Front Position)
Mounting: Retrofit 178mm Ø (7") headlamps
Voltage: Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

1056LED:
High Beam: 35W
Low Beam: 25W

1058LED:
Daytime Running Lamp: 15W
Front Position: 2W

Light Output

High Beam: 1150 lumen

Low Beam: 750 lumen

Protection: Reverse polarity protection.
IP 67 (Protection against dust and temporary water immersion)
Connection: 3 PIN "H4" type male plug (100mm cable)
Cable Length:

P/N 1058LED has 2 additional 100mm pre-wired cables with male blade terminals for front position and daytime running lamp functions.

Housing: Material Die-cast Aluminium
Lens: Material Coated Polycarbonate

Compliance: ECE R112/01 Ref. 12.5
1056LED: E11 7581
1058LED: E11 6081 ECE R87/00 ECE R7/02

Position Light - LED - 12/24V - mounting - ADR/GGVS - Cable: 100mm - Front

Features

• Ø: 178mm - Lamp Type: LED
• Light functions: 2 - with position light (LED)/with daytime running light (LED)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R112/R87/R7/02 - Prot.type (IP Code): IP67
• Housing material: Cast Aluminium - Diffusing Lens Material: PC (Polycarbonate)
• Mounting Type: mounting

Specifications

• Part number: 1058LED
• Hella number: 1L6 958 307-011
• Barcode (EAN): 9416325242314
• Brand: Hella
• Fitting Position: Front
• Mounting Type: mounting
• Voltage: 12 / 24 V
• Number of light functions: 2
• Light Function: with daytime running light (LED)
• Power Consumption: 2 W
• Light Design: LED
• Lamp Type: LED
• Reverse polarity protection: Yes
• Cable Length: 100 mm
• Housing material: Cast Aluminium
• Lens Material: PC (Polycarbonate)
• Diameter: 178 mm
• Thickness: 99 mm
• Protection Type per ISO 20653: IP67
• fulfils ECE standard: R112 / R7.02 / R87
• Registration Type: ADR/GGVS approved

Assy./disassy. by qualified personnel required!
