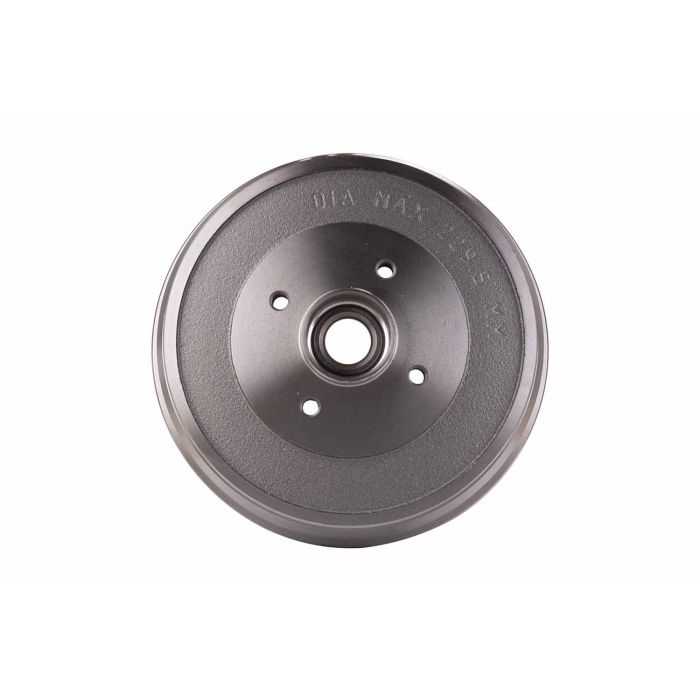

Hella 61392 Brake Drum

Hella 61392 Brake Drum

Hella 8DT355303111 Brake Drum

Brake Drum - 61392 - for e.g. DACIA / LADA / NISSAN / RENAULT

Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

Features

• fits e.g. DACIA / LADA / NISSAN / RENAULT (please check exact vehicle application)
• with wheel hub/with integrated magnetic sensor ring/with wheel bearing/without wheel studs
• Hole Pitch/Number: 04/04 - Bolt Hole Circle Ø: 100mm
• Outer brake drum diameter: 272mm - Weight: 10.6kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Market coverage of > 81% of European vehicle stocks

Specifications

• Part number: 61392
• Hella number: 8DT 355 303-111
• Barcode (EAN): 4082300606829
• Brand: Hella
• Outer brake drum diameter: 272 mm
• Total brake drum height: 89 mm
• Inner brake drum diameter: 229 mm
• Inner brake drum height: 52 mm
• max. brake drum reboring dimension: 229.5 mm
• Hole Arrangement/Number: 04/04
• Bolt Hole Circle Ø: 100 mm
• Centering Diameter: 62 mm
• Stub Axle Diameter: 30 mm
• Wheel Bolt Bore Diameter: 12 mm
• Weight: 10.6 kg
• Fitting Position: Rear Axle

with integrated magnetic sensor ring; with wheel bearing; with wheel hub; without wheel studs Assy./disassy. by qualified personnel required!
