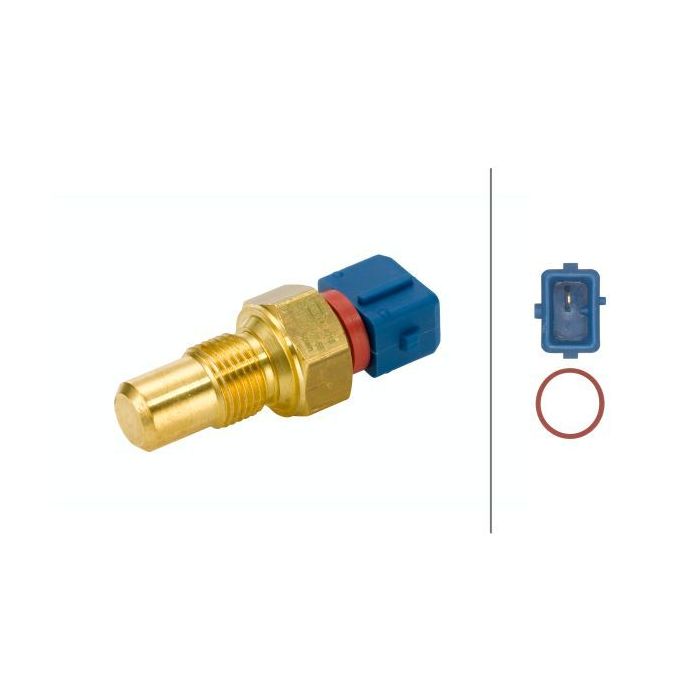

Hella 6PT009107681 Coolant Temperature Sensor

Hella 6PT009107681 Coolant Temperature Sensor

Hella 6PT009107681 Coolant Temperature Sensor

Sensor, oil temperature - 12V - 1-pin connector - Bolted

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The temperature sensors from HELLA are versatile: Oil, coolant, intake air, outside and interior temperatures can be precisely recorded with them. The changing resistance is used by various control units for further calculations. The sensor, which is manufactured in-house, impresses with its robust design, which ensures the best measurement results under difficult conditions.

Features

• fits e.g. Peugeot 306 Hatchback (7A, 7C, N3, N5) (please check exact vehicle application)
• Temp. Range: 25/80°C
• NTC Sensor - Thread Size: M14x1,25 - Spanner size: 19
• Colour: Blue - Corresponds to the original part in colour: BlueColour Coding: Red
• NTC sensor
• Number of connections: 1-pole
• Thread dimension: M14x1,25
• Resistance: 2.053 Ohm, 238 Ohm
• Temperature range from 25 °C to 80 °C
• Brief Information
• *** HELLA Electronics OE competence for over 60 years.

Specifications

• Part number: 6PT009107681
• Hella number: 6PT 009 107-681
• Barcode (EAN): 4082300163636
• Brand: Hella
• Mounting Type: Bolted
• Voltage: 12 V
• Resistor: 238 / 2053 ohm
• Temperature range: 25 / 80°C
• Thread Size: M14x1,25
• Colour: blue
• Spanner Size: 19
• Sensor Type: NTC Sensor
• Number of pins: 1
• Colour Coding: red
• Corresponds to the original part in colour: blue
• Fitting Position: Lower

7439-92-1; Lead Assy./disassy. by qualified personnel required!
