Hella 2XD066979001 K-LED 80 Amber Flashing Beacon

Hella 2XD066979001 K-LED 80 Amber Flashing Beacon

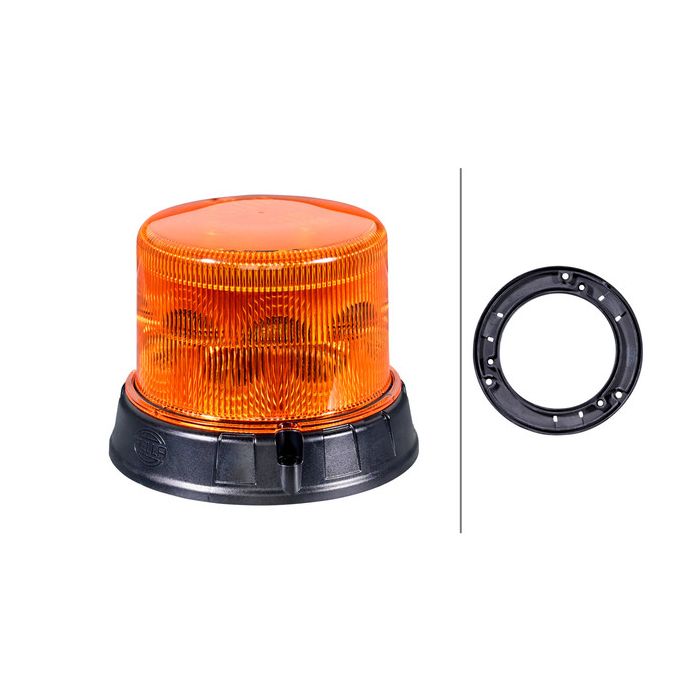

Hella K-LED 80 amber flashing beacon, a warning beacon for commercial, emergency and mining vehicles.

LED-Strobe-type Beacon - K-LED Nano 80 - 12/24V - yellow (amber) - Bolted

The K-LED Nano 50, 80 and 120 beacons are designed to enhance safety and visibility, offering rotating and flashing modes to suit different needs. With various sizes and lens colors (amber, blue, red and green) available, as well as easy mounting options that meet international standards, they provide unmatched flexibility. Beyond their stylish appearance, they are built to last, with impact resistance and electromagnetic compatibility (EMC) that meet strict standards like ECE-R65, SAE, ADR, UKCA, and RCM. By adhering to industry regulations, the K-LED Nano 50, 80 and 120 series guarantee reliability and assurance across a wide range of applications.

Features

• Lamp Type: LED
• With flashing warning signal
• Prot.type (IP Code): IP6K7/IP6K9
• Housing Colour: Black
• Height: 111mm
• Offered in three sizes
• Designed for a wide range of applications
• Available as rotating or flashing version for fixed or pipe socket mounting

Specifications

• Part number: 2XD066979001
• Hella number: 2XD 066 979-001
• Barcode (EAN): 4082300946437
• Brand: Hella
• Mounting Type: Bolted
• Voltage: 12 / 24 V
• Power Consumption: 19 W
• Lamp Type: LED
• Light Design: LED
• Height: 111 mm
• Outer Diameter: 143 mm
• Light Function: with flashing warning signal
• Light colour: yellow (amber)
• Number of LEDs: 16
• Plug Type: Blade Terminal
• Housing Colour: black
• Housing material: PC (Polycarbonate)
• Lens Colour: yellow (amber)
• Lens Material: PC (Polycarbonate)
• Temperature range from: -40°C
• Temperature range to: 60°C
• Registration Type: ADR/GGVS approved
• Protection Type per ISO 20653: IP6K7 / IP6K9
• fulfils SAE standard: J845 Class 1
• fulfils EMC/CISPR standard: Class 5
• fulfils ECE standard: R10 / R65 TA1
• Weight: 397 g
• Product line: K-LED Nano

Assy./disassy. by qualified personnel required!
