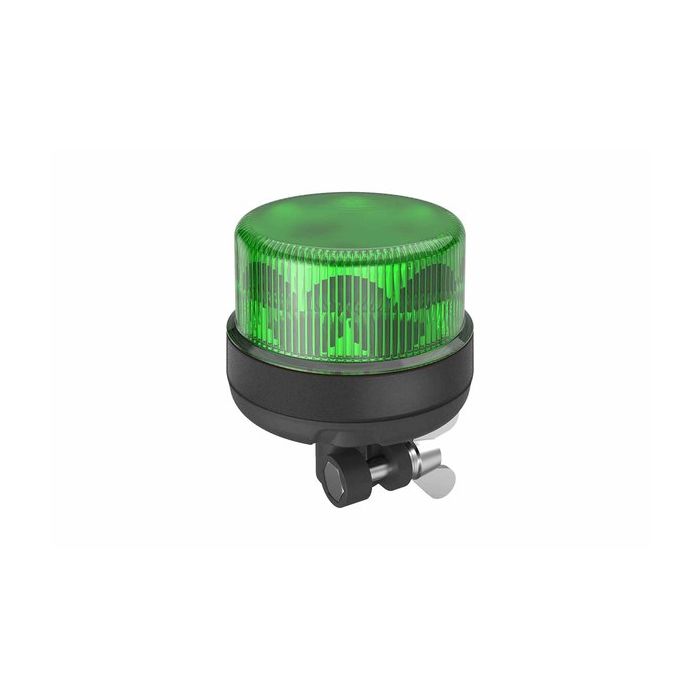

Hella 2XD066147311 K-LED 50 Green Flashing Pipe Mount Beacon

Hella 2XD066147311 K-LED 50 Green Flashing Pipe Mount Beacon

Hella K-LED 50 green flashing pipe mount beacon, a warning beacon for commercial, emergency and mining vehicles.

LED-Strobe-type Beacon - K-LED Nano 50 - 12/24V - green - Pipe-neck

The K-LED Nano 50, 80 and 120 beacons are designed to enhance safety and visibility, offering rotating and flashing modes to suit different needs. With various sizes and lens colors (amber, blue, red and green) available, as well as easy mounting options that meet international standards, they provide unmatched flexibility. Beyond their stylish appearance, they are built to last, with impact resistance and electromagnetic compatibility (EMC) that meet strict standards like ECE-R65, SAE, ADR, UKCA, and RCM. By adhering to industry regulations, the K-LED Nano 50, 80 and 120 series guarantee reliability and assurance across a wide range of applications.

Features

• OE References
• Lamp Type: LED
• With flashing warning signal
• Prot.type (IP Code): IP6K7/IP6K9
• Housing Colour: Black
• Height: 123mm
• Offered in three sizes
• Designed for a wide range of applications
• Available as rotating or flashing version for fixed or pipe socket mounting

Specifications

• Part number: 2XD066147311
• Hella number: 2XD 066 147-311
• Barcode (EAN): 4082300946147
• Brand: Hella
• Mounting Type: Pipe-neck
• Voltage: 12 / 24 V
• Lamp Type: LED
• Light Design: LED
• Height: 124 mm
• Light Function: with flashing warning signal
• Housing Colour: black
• Housing material: PC (Polycarbonate)
• Lens Colour: green
• Light colour: green
• Number of LEDs: 16
• Temperature range from: -40°C
• Temperature range to: 60°C
• Outer Diameter: 109 mm
• Power Consumption: 19 W
• Protection Type per ISO 20653: IP6K7 / IP6K9
• Plug Type: Blade Terminal Sleeve
• Registration Type: ADR/GGVS approved / SAE approved
• fulfils EMC/CISPR standard: Class 5
• fulfils ECE standard: R10
• fulfils test standard: RCM
• Weight: 438 g
• Lens Material: PC (Polycarbonate)
• Product line: K-LED Nano

OE References Assy./disassy. by qualified personnel required!
