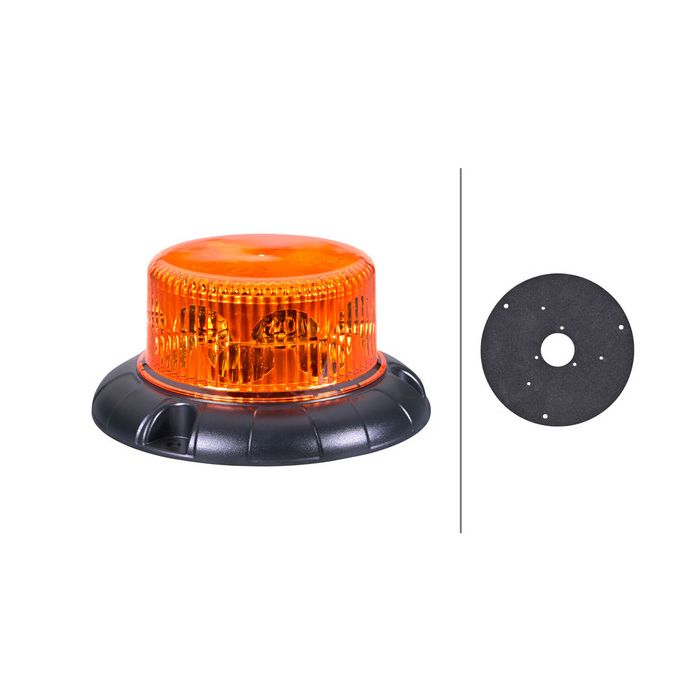

Hella 2RL099147001 K-LED 50 Amber Rotating Beacon

Hella 2RL099147001 K-LED 50 Amber Rotating Beacon

Hella K-LED 50 amber rotating beacon, a warning beacon for commercial, emergency and mining vehicles.

LED-Rotating Beacon - K-LED Nano 50 - 12/24V - yellow (amber) - Bolted

The K-LED Nano 50, 80 and 120 beacons are designed to enhance safety and visibility, offering rotating and flashing modes to suit different needs. With various sizes and lens colors (amber, blue, red and green) available, as well as easy mounting options that meet international standards, they provide unmatched flexibility. Beyond their stylish appearance, they are built to last, with impact resistance and electromagnetic compatibility (EMC) that meet strict standards like ECE-R65, SAE, ADR, UKCA, and RCM. By adhering to industry regulations, the K-LED Nano 50, 80 and 120 series guarantee reliability and assurance across a wide range of applications.

Features

• Lamp Type: LED
• With rotating warning signal - Lens Colour: yellow (amber)
• Prot.type (IP Code): IP6K7/IP6K9
• Housing Colour: Black
• Height: 72mm
• Offered in three sizes
• Designed for a wide range of applications
• Available as rotating or flashing version for fixed or pipe socket mounting

Specifications

• Part number: 2RL099147001
• Hella number: 2RL 099 147-001
• Barcode (EAN): 4082300946062
• Brand: Hella
• Mounting Type: Bolted
• Voltage: 12 / 24 V
• Lamp Type: LED
• Light Design: LED
• Height: 72 mm
• Light Function: with rotating warning signal
• Housing Colour: black
• Housing material: PC (Polycarbonate)
• Lens Colour: yellow (amber)
• Light colour: yellow (amber)
• Number of LEDs: 16
• Temperature range from: -40°C
• Temperature range to: 60°C
• Outer Diameter: 146 mm
• Power Consumption: 4 W
• Protection Type per ISO 20653: IP6K7 / IP6K9
• Plug Type: Blade Terminal Sleeve
• Registration Type: ADR/GGVS approved / ECE approved / SAE approved
• fulfils SAE standard: J845 Class 1
• fulfils EMC/CISPR standard: Class 5
• fulfils ECE standard: R10 / R65 / TA1
• fulfils test standard: RCM
• Weight: 229 g
• Lens Material: PC (Polycarbonate)
• Product line: K-LED Nano

Assy./disassy. by qualified personnel required!
