Hella 2RL011484001 Rotating Beacon, Kl7000 KL 7000 LED

Hella 2RL011484001 Rotating Beacon, Kl7000 KL 7000 LED

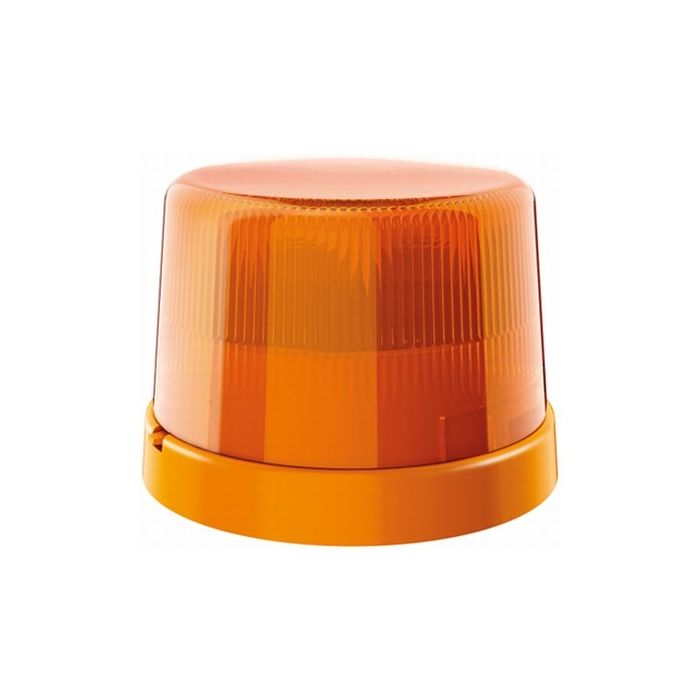

Hella rotating beacon, Kl7000 KL 7000 LED, a warning beacon for commercial, emergency and mining vehicles.

LED-Rotating Beacon - KL 7000 - 12/24V - Yellow - mounting/Bolted - Cable: 200mm - Plug: Blade Terminal - Quantity: 1

Active thermal management: The use of thermally conductive materials and the special arrangement of the components means that the heat is carried away from the LEDs and their service life is extended

The KL 7000 LED beacon is available with flashing or rotating light function. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 32 V and is available as a fixed-mount variant (F), with tube socket mounting (R) or with magnetic mounting (M). The fixed version can be mounted from above and below. The product is very flat and has a scratch-resistant and dirt-resistant smooth light bonnet. The height of the beacon is approx. 119 mm (F) to 194 mm (R), depending on the design. It meets the requirements of IP5K4K and IPX9K and is therefore protected against dust and resistant to high-pressure cleaners. In addition, the KL 7000 LED enables a 1:1 exchange from halogen to LED technology, as it is the successor of the halogen beacon series KL 700 and KL 7000.

Features

• OE References
• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 10W
• With rotating warning signal - Lens Colour: Yellow
• Registration Type: ADR/GGVS/SAE - Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IPX9K/IP5K4K
• Housing material: Plastic - Housing Colour: Orange - Diffusing Lens Material: PMMA (Polymethylmethacrylate)
• Height: 119mm - Electromagnetic Compatibility (EMC)
• An innovative electronic concept enables the lighting function without moving parts
• The impact-resistant and dirt-resistant light dome ensures an optimum warning effect at all times
• Previous models KL 700 Halogen or KL 7000 Halogen can easily be converted to the KL 7000 LED
• The beacon has low power consumption and a high light output ratio thanks to the rotating lighting function

Specifications

• Part number: 2RL011484001
• Hella number: 2RL 011 484-001
• Barcode (EAN): 4082300330960
• Brand: Hella
• Mounting Type: Bolted / mounting
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 / 24 V
• Power Consumption: 10 W
• Height: 119 mm
• Outer Diameter: 165 mm
• Light Function: with rotating warning signal
• Rotating beacon RPM: 123 1/min
• Number of LEDs: 8
• Light colour: yellow (amber)
• Lens Material: PMMA (Polymethylmethacrylate)
• Lens Colour: yellow (amber)
• Housing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
• Housing Colour: Orange
• Cable Length: 200 mm
• Plug Type: Blade Terminal
• Registration Type: ADR/GGVS approved
• Protection Type per ISO 20653: IP5K4K / IPX9K
• fulfils ECE standard: R10 / R65 TA1
• fulfils SAE standard: J845 Class 2
• fulfils EMC/CISPR standard: Class 5
• Temperature range from: -40°C
• Temperature range to: 60°C
• Reverse polarity protection: Yes
• Weight: 670 g
• Product line: KL 7000

OE References Assy./disassy. by qualified personnel required!
