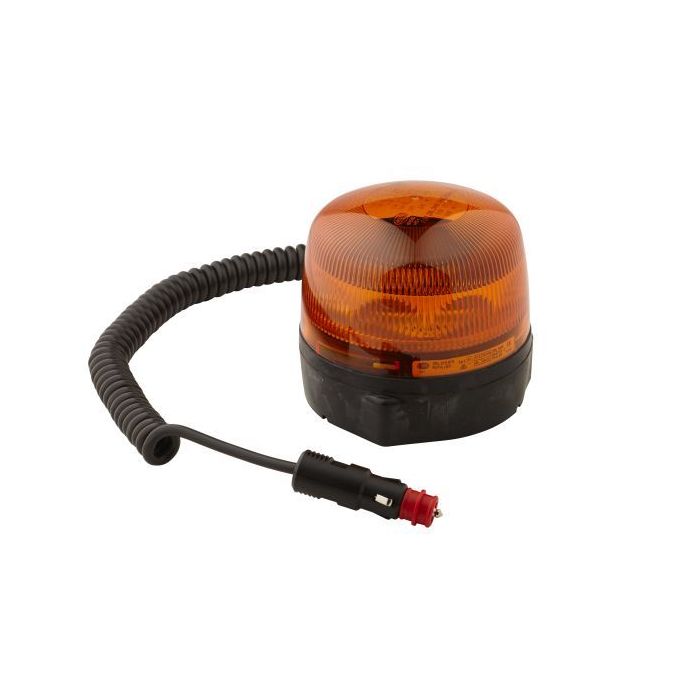

Hella 2RL010979021 Rotating Beacon Rotaled, Magnet Mount Yellow

Hella 2RL010979021 Rotating Beacon Rotaled, Magnet Mount Yellow

Hella rotating beacon rotaled, magnet mount yellow, a warning beacon for commercial, emergency and mining vehicles.

LED-Rotating Beacon - RotaLED - 12/24V - Yellow - Magnet Mount - Cable: 600mm - Plug: DIN ISO 4165 - Quantity: 1

Due to the shock-absorbing rubber base, the Rota LED is characterised by a very high vibration resistance and is therefore suitable for demanding applications

The RotaLED beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 124 mm (F) to 184 mm (FL), depending on the design. The RotaLED beacon meets the requirements of IP 5K4K and IP X9K and is therefore protected against dust and resistant to high-pressure cleaners. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

Features

• OE References
• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 10W
• With rotating warning signal - Lens Colour: Yellow
• Registration Type: ADR/GGVS/SAE - Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IPX9K/IP65
• Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber) - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Height: 126mm - Electromagnetic Compatibility (EMC)
• No moving parts are required for the lighting functions - no wear and tear and maximum reliability
• As LEDs are maintenance-free, they do not cause additional spare parts and maintenance costs
• Service life is reduced to a minimum
• The impact-resistant polycarbonate light dome protects against impacts (e.g. from branches)

Specifications

• Part number: 2RL010979021
• Hella number: 2RL 010 979-021
• Barcode (EAN): 4082300296174
• Brand: Hella
• Mounting Type: Magnet Mount
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Power Consumption: 9 W
• Height: 126 mm
• Outer Diameter: 132 mm
• Rotating beacon RPM: 123 1/min
• Light Function: with rotating warning signal
• Light colour: yellow (amber)
• Number of LEDs: 8
• Plug Type ID: DIN ISO 4165
• Cable Length: 600 mm
• Protection Type per ISO 20653: IP5K4K / IPX9K
• Registration Type: ADR/GGVS approved
• fulfils ECE standard: R10 / R65 TA1
• fulfils SAE standard: J845 Class 2
• fulfils EMC/CISPR standard: Class 5
• Lens Colour: yellow (amber)
• Housing Colour: black
• Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Lens Material: PC (Polycarbonate)
• Permissible maximum speed: 120 km/h
• Reverse polarity protection: Yes
• Temperature range from: -40°C
• Temperature range to: 60°C
• Weight: 930 g
• Product line: RotaLED

OE References Assy./disassy. by qualified personnel required!
