Hella 2RL010979001 Rotating Beacon Rotaled Yellow

Hella 2RL010979001 Rotating Beacon Rotaled Yellow

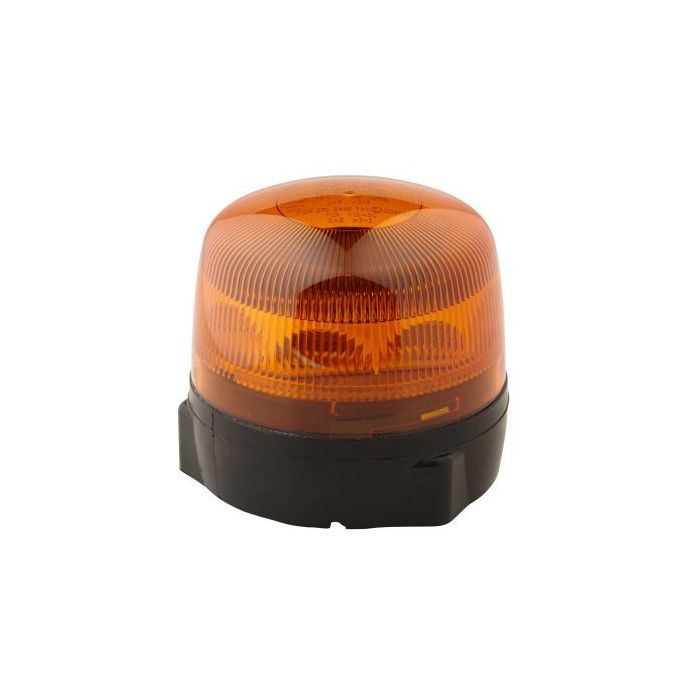

Hella rotating beacon rotaled yellow, a warning beacon for commercial, emergency and mining vehicles.

LED-Rotating Beacon - RotaLED - 12/24V - yellow - mounting/Bolted - Cable: 120mm - 2-pin connector - Quantity: 1

Due to the shock-absorbing rubber base, the Rota LED is characterised by a very high vibration resistance and is therefore suitable for demanding applications

The RotaLED beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 124 mm (F) to 184 mm (FL), depending on the design. The RotaLED beacon meets the requirements of IP 5K4K and IP X9K and is therefore protected against dust and resistant to high-pressure cleaners. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

Features

• OE References
• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 10W
• With rotating warning signal - Lens Colour: Yellow
• Registration Type: ADR/GGVS/SAE - fulfils ECE norm: R10/R65 - Prot.type (IP Code): IPX9K/IP65
• Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber) - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Height: 124mm
• No moving parts are required for the lighting functions - no wear and tear and maximum reliability
• As LEDs are maintenance-free, they do not cause additional spare parts and maintenance costs
• Service life is reduced to a minimum
• The impact-resistant polycarbonate light dome protects against impacts (e.g. from branches)

Specifications

• Part number: 2RL010979001
• Hella number: 2RL 010 979-001
• Barcode (EAN): 4082300295733
• Brand: Hella
• Mounting Type: Bolted / mounting
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 / 24 V
• Power Consumption: 10 W
• Height: 124 mm
• Outer Diameter: 135 mm
• Light Function: with rotating warning signal
• Rotating beacon RPM: 123 1/min
• Number of LEDs: 8
• Light colour: yellow (amber)
• Lens Material: PC (Polycarbonate)
• Lens Colour: yellow (amber)
• Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Housing Colour: black
• Cable Length: 120 mm
• Number of pins: 2
• Registration Type: ADR/GGVS approved
• Protection Type per ISO 20653: IP65 / IPX9K
• fulfils ECE standard: R10 / R65 TA1
• fulfils SAE standard: J845 Class 2
• Temperature range from: -40°C
• Temperature range to: 60°C
• Reverse polarity protection: Yes
• Weight: 630 g
• Product line: RotaLED

OE References Assy./disassy. by qualified personnel required!
