Hella 2JA343570041 Interior Light, 24V Mini Ovalled, Fitting

Hella 2JA343570041 Interior Light, 24V Mini Ovalled, Fitting

Hella interior light, 24V mini ovalled, fitting for interior lighting in caravans, motorhomes, buses, boats and commercial vehicles.

Interior Light - Mini OvalLED - LED - 24V - 1.2W - Fitting - Lens Colour: Crystal clear - Interior - Quantity: 1

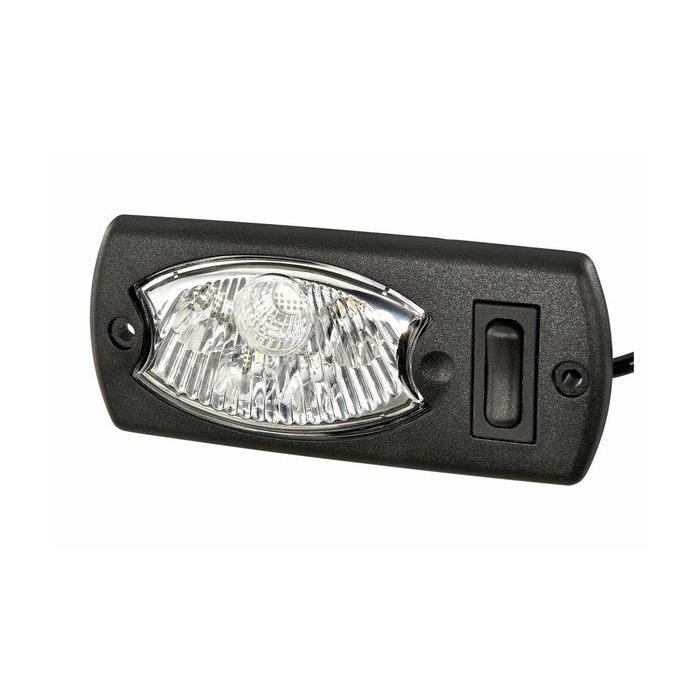

The Mini OvalLED indoor lamp offers optimum light output thanks to the use of 4 LEDs. The product can have power LEDs or standard LEDs. In addition, ambient lighting can be achieved via a separate switch for a red (or blue) LED. The crystal-clear plexiglas lens and the black, shatterproof housing made of impact-resistant and UV-resistant plastic (ABS) complement the design of the lamp. The version without switch and bezel is waterproof and therefore ideal for use in cold and damp environments. The variant with switch offers the convenience of simple and quickly accessible operation. The lamp can be installed using screw mounting or as a flush-mounted version.

Features

• Length: 92mm - Width: 11mm - Height: 47mm - Depth: 28mm
• Housing Colour: Black - Frame Colour: Black - Light functions: 1 - with cabin light - Lamp Type: LED
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K
• with circuit closer switch - with frame
• Cable: 150mm - Number of LEDs: 5
• Optimum light output
• Ambient lighting via separate switch
• Particularly shatterproof housing

Specifications

• Part number: 2JA343570041
• Hella number: 2JA 343 570-041
• Barcode (EAN): 6416386912723
• Brand: Hella
• Mounting Type: Fitting
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 V
• Fitting Position: Interior
• Length: 92 mm
• Width: 11 mm
• Height: 47 mm
• Depth: 28 mm
• Light Function: with cabin light
• Number of light functions: 1
• Protection Type per ISO 20653: IP6K9K
• fulfils ECE standard: R10
• Number of LEDs: 5
• Housing Colour: black
• Lens Colour: Crystal clear
• Frame Colour: black
• Cable Length: 150 mm
• Switch: with circuit closer switch
• Current Strength: 0.15 A
• Power Consumption: 1.2 W
• Product line: Mini OvalLED

with frame 7439-92-1; Lead Assy./disassy. by qualified personnel required!
