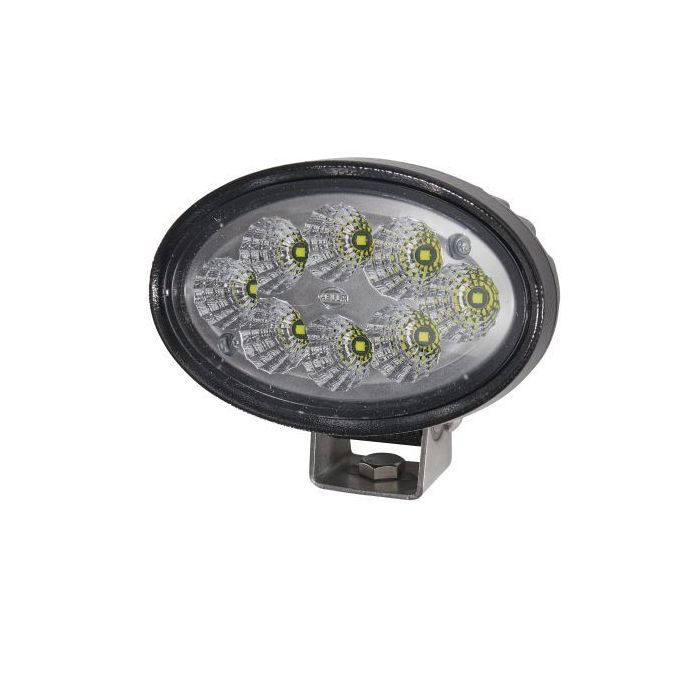

Hella 1GA996761011 Oval 100 LED G2 Work Lamp, Long Range Oval 100 LED Gen. Ii

Hella 1GA996761011 Oval 100 LED G2 Work Lamp, Long Range Oval 100 LED Gen. Ii

Hella oval 100 LED G2 work lamp, long range oval 100 LED gen. ii, a heavy-duty work lamp for trucks, machinery, agricultural and mining vehicles.

LED-Worklight - Oval 100 Gen. II - 24/12V - 4400lm - mounting/Bolted - Swivelling Mounting Bracket - Long-range illumination - Plug: DEUTSCH plug

The light output is a powerful 4,400 lumens, which means the Oval 100 LED Gen. 2 can easily replace Xenon worklights.

The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.

The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the 8 high-power LEDs.

A sensor also protects the worklight from overheating. Only in this way can the long service life of the LEDs be fully exploited.

The Oval 100 LED Generation 2 complements the existing halogen and xenon versions of the modular series with an LED option. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light output is a powerful 4,400 lumens, which means the Oval 100 LED Gen. 2 can easily replace xenon worklights. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED Gen. 2 can be mounted either standing or hanging. With 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklight's black housing is made of aluminium and has cooling fins, to dissipate the heat of the 8 high-power LEDs. In addition, a sensor protects the worklight from overheating ensuring the long service life of the LEDs (up to 30 times the service life of a xenon gas discharge lamp).

Features

• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 56W - Colour Temperature: 6500K
• Clear diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: Black
• Width: 153mm - Height: 129mm - Depth: 74mm
• At 6,500 Kelvin, the light of the LED worklight is very similar to daylight.

Specifications

• Part number: 1GA996761011
• Hella number: 1GA 996 761-011
• Barcode (EAN): 9002920157438
• Brand: Hella
• Mounting Type: Bracket mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 98 mm
• Overall Height: 131 mm
• Width: 153 mm
• Depth: 74 mm
• Light Distribution: Long-range illumination
• Light colour: white
• fulfils ECE standard: R10
• Plug Type: DEUTSCH plug
• Protection Type per ISO 20653: IP6K8 / IP6K9K
• Luminous Flux: 4400 lm
• Theoretical luminous flux: 5500 lm
• Colour Temperature: 6500 K
• Number of LEDs: 8
• Power Consumption: 54 / 56 W
• Housing Colour: black
• Housing material: Die-Cast Aluminium
• Lens Material: PC (Polycarbonate)
• Lens Type: clear lens
• Lens Colour: Crystal clear
• Shape: oval
• Registration Type: ECE approved
• Voltage from: 9 V
• Voltage to: 32 V
• Temperature range from: -40°C
• Temperature range to: 50°C
• Reverse polarity protection: Yes
• Weight: 920 g
• Product line: Oval 100 Gen. II

Assy./disassy. by qualified personnel required!
