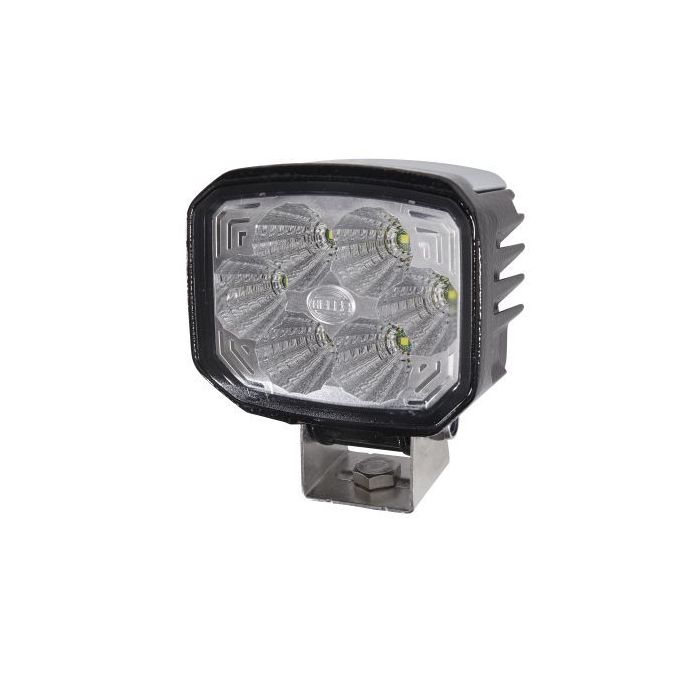

Hella 1GA996288001 Power Beam 1500 Work Lamp, Long Range Wide Area Lighting, LED

Hella 1GA996288001 Power Beam 1500 Work Lamp, Long Range Wide Area Lighting, LED

Hella power beam 1500 work lamp, long range wide area lighting, LED, a heavy-duty work lamp for trucks, machinery, agricultural and mining vehicles.

LED-Worklight - Power Beam 1500 - 12/24V - 1300lm - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Long-range illumination - Plug: DEUTSCH plug

The light of the 6 high-power LEDs is homogeneously distributed in the working area by a specially developed multi-facetted reflector.

Thanks to its powerful light output, the Power Beam 1500 can replace standard halogen worklights.

Thanks to its low power consumption, the worklight is ideal for use on battery-powered vehicles and on vehicles whose alternator is already heavily loaded.

The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the 6 high-power LEDs.

The plastic part on the back acts as a handle to tilt the worklight into the correct position.

The Power Beam 1500 is an ideal LED worklight that combines powerful light output in a practical design. The worklight is designed to be universally applicable due to its compact dimensions. The light of the 6 high-power LEDs is homogeneously distributed in the working area by a specially developed multi-facet reflector. Thanks to its powerful light output, the Power Beam 1500 can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 22 watts. This makes the worklight ideal for use on vehicles with battery operation and also, where the alternator is already heavily loaded. The spotlight can be operated with either 12 or 24 volts. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass. This ensures the function of the worklight even in the unlikely event of an LED failure. With a colour temperature of 5,700 Kelvin, the light of the LED worklight is similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye. Working at night is thus made easier and rapid eye fatigue is prevented. The black housing of this worklight is made of aluminium and has cooling fins. These ensure the necessary heat dissipation of the 6 high-performance LEDs. In addition, a temperature sensor protects the worklight from overheating. Only in this way can the long service life of the LEDs be fully exploited. The plastic part at the back acts as a handle to tilt the worklight into the right position.

Features

• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 22W - Colour Temperature: 5700K
• Clear diffusing lens
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: Black/Grey - Diffusing Lens Material: Polyamid 12
• Width: 112mm - Height: 129mm - Depth: 62mm

Specifications

• Part number: 1GA996288001
• Hella number: 1GA 996 288-001
• Barcode (EAN): 9002920146630
• Brand: Hella
• Mounting Type: Bracket mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 97 mm
• Overall Height: 129 mm
• Width: 112 mm
• Depth: 62 mm
• Shape: Square
• Light Distribution: Long-range illumination
• Light colour: white
• Registration Type: ADR/GGVS approved / ECE approved
• fulfils ECE standard: R10
• Plug Type: DEUTSCH plug
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Cable Length: 200 mm
• Luminous Flux: 1300 lm
• Theoretical luminous flux: 1625 lm
• Colour Temperature: 5700 K
• Number of LEDs: 6
• Power Consumption: 22 W
• Housing Colour: black/grey
• Housing material: Die-Cast Aluminium
• Lens Material: Polyamid 12
• Lens Type: clear lens
• Lens Colour: Crystal clear
• Reverse polarity protection: Yes
• Voltage from: 9 V
• Voltage to: 33 V
• Temperature range from: -40°C
• Temperature range to: 50°C
• Weight: 615 g
• Product line: Power Beam 1500

Assy./disassy. by qualified personnel required!
