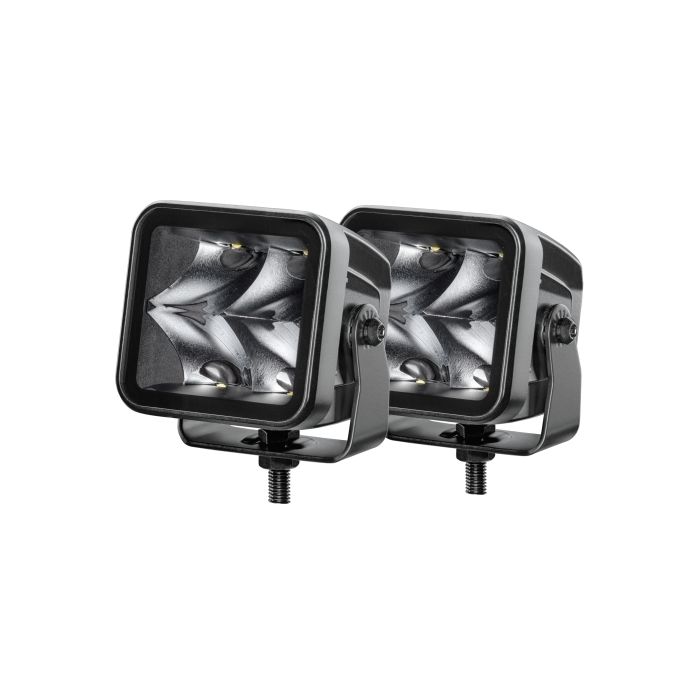

Hella 1FA358176821 Black Magic, LED Cube Kit 3.2'' Spot

Hella 1FA358176821 Black Magic, LED Cube Kit 3.2'' Spot

Hella Black Magic, LED cube kit 3.2'' spot for off-road and auxiliary driving light applications.

LED-Spotlight - Black Magic Edgeless Cube Kit 3.2" - 12/24V - 3000lm - Square - Spot illumination - Cable: 500mm - Plug: DEUTSCH plug - Kit - Quantity: 2

HELLA‘s Black Magic Cubes are available in 2 sizes, 2.7˝ and 3.2˝. Distinguished by the full blackout appearance and sleek design makes this light stand out from the crowd. Black Magic Cubes received the highest dust and waterproof rating. They come in kits of 2 lights including a wiring harness with DT connector, switch, connector and relays making them easy to install. The 3.2˝ is available in Flood or Spot light and can be upright or pendant mounted or integrated into the body work or bumper. HELLA‘s Black Magic Cubes are ready to brighten up your next adventure.

Features

• Width: 81mm - Height: 83mm - Depth: 68mm - Lamp Type: LED - Number of LEDs: 4 - with cable/with switch
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP68/IP69K
• Housing Colour: Black
• Mounting Type: mounting - Fastening Type: Swivelling Mounting Bracket
• Full blackout appearance including black brackets
• Sleek design eliminates dust and dirt from being lodged in edges
• Each kit includes the wiring harness with DT connector, switch, connector and relays (easy to install)
• Compact design for universal installation

Specifications

• Part number: 1FA358176821
• Hella number: 1FA 358 176-821
• Barcode (EAN): 4082300807653
• Brand: Hella
• Mounting Type: mounting
• Fastening Type: Swivelling Mounting Bracket
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 / 24 V
• Width: 81 mm
• Depth: 68 mm
• Height: 83 mm
• Light Distribution: Short-Range Illumination
• fulfils ECE standard: R10
• Plug Type: DEUTSCH plug
• Protection Type per ISO 20653: IP68 / IP69K
• Luminous Flux: 3000 lm
• Colour Temperature: 5700 K
• Number of LEDs: 4
• Power Consumption: 40 W
• Cable Length: 500 mm
• Housing Colour: black
• Shape: Square
• Quantity Unit: Kit
• Length: 3.2 inch
• Product line: Black Magic Edgeless

with cable; with switch Assy./disassy. by qualified personnel required!
