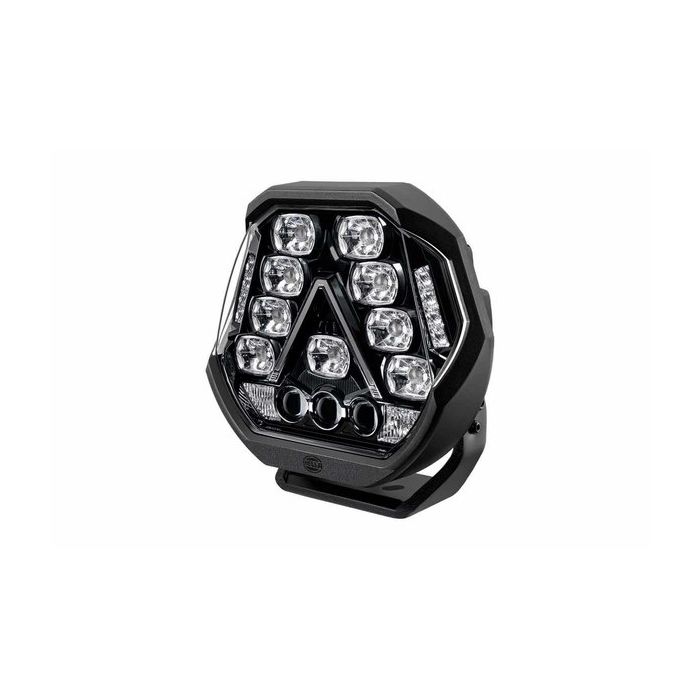

Hella 1F0358228871 Antares 9'' Driving Light Kit

Hella 1F0358228871 Antares 9'' Driving Light Kit

Hella antares 9'' driving light kit for off-road and auxiliary driving light applications.

LED-Spotlight - Antares HP 200 - 12V - round - Crystal clear - Cable: 500mm - frontal sided - Pair - Quantity: 2

Features

• Length: 225mm - Width: 103mm - Height: 205mm - Depth: 103mm - Fitting Depth: 103mm - Overall Height: 199mm - Lamp Type: LED - with screw
• Light functions: 4 - with high beam (LED)/with position light (LED)/with daytime running light (LED)
• fulfils ECE norm: R10/R148/R149/R87 - Prot.type (IP Code): IP69K/IP67
• Aluminium Housing - Material: Aluminium - Housing Colour: Black - Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
• Mounting Type: mounting - Fastening Type: Screw-on

Specifications

• Part number: 1F0358228871
• Hella number: 1F0 358 228-871
• Barcode (EAN): 4082300939286
• Brand: Hella
• Mounting Type: Bolted
• Fastening Type: Swivelling Mounting Bracket
• Fitting Position: frontal sided
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 V
• Operating voltage from: 10 V
• Operating voltage to: 30 V
• Rated Power: 200 W
• Height: 207 mm
• Overall Height: 231.5 mm
• Length: 225 mm
• Depth: 93 mm
• Total Depth: 105 mm
• Light Function: High-boost / with daytime running light (LED) / with high beam (LED) / with position light (LED)
• Number of light functions: 4
• Light Distribution: Off-Road Illumination
• Cable Length: 500 mm
• Plug Type: DEUTSCH plug
• Colour: black
• fulfils EMC/CISPR standard: Class 3
• fulfils ECE standard: R10 / R148 / R149 / R87
• Protection Type per ISO 20653: IP67 / IP69K
• Reverse polarity protection: Yes
• Shape: hexagonal
• Lens Material: PC (Polycarbonate)
• Lens Colour: Crystal clear
• Housing Type: Aluminium Housing
• Housing Colour: black
• Frame Colour: black
• Weight: 2200 g
• Quantity Unit: Pair
• Reference number: 30
• Luminous Flux: 11000 lm
• max. light cone range at 1 lux (main light function): 355 m
• max. light cone range at 1 lux (high boost function): 588 m
• Product line: Antares

with cover; with fastening material Assy./disassy. by qualified personnel required!
